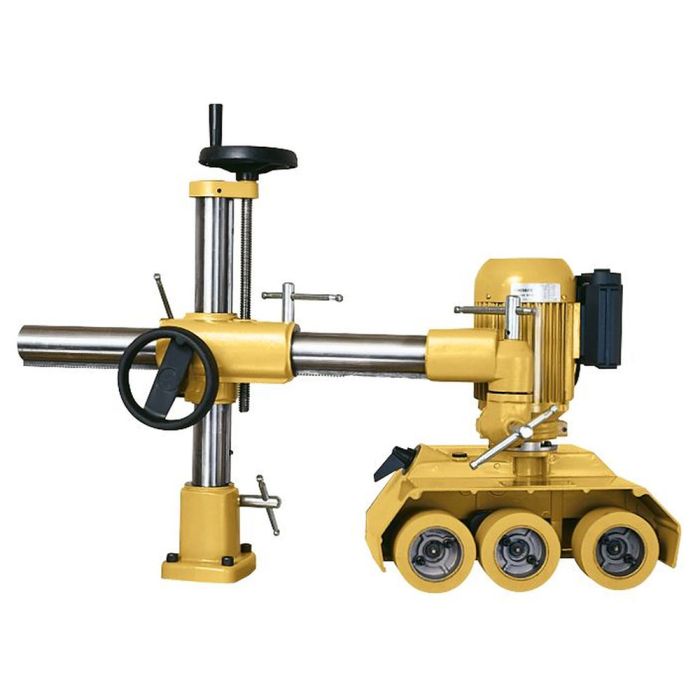

Powermatic 1790800K PF-33 230V 4-Speed Feeder Powerfeeder, 1HP/3Ph

SKU
1790800K
$1,479.99
Ships direct from manufacturer?
These rugged, heavy-duty stock feeders feature continuous-duty motors that transfer power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of bodies, bases and universal joints provide stability with vibration-free feeding.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Powermatic
Condition New
UPC 66275535111
Features
  • Continuous duty motors transfer power from the gear box to the feed roller
  • Solid cast iron construction of body pieces and base
  • Moveable universal joints and locking mechanisms lock the feeder in horizontal, vertical, or angle feed positions
  • Universal joints provide stability for vibration free feeding
  • Roller chain and sproket design provide positive feeding for all types of materials
  • Smart roller system allows for tire to be replaces with out replacing the assembly
  • Support column is fully adjustable for horizontal, vertical or angled feeder position
  • Rollers can be changed out easily and quickly
PDFs
Horsepower 1 HP
Motor Phase 3 Ph
Column Diameter2 1/4"
Motor Voltage230 V
Prewired Voltage230 V
Movement - Vertical9 3/4"
Movement - Horizontal18 1/16"
Swing360 Deg
RotationForward/Reverse
Maximum Height of Rollers Parallel to Tabletop8 1/2"
Range of Speeds133,643,108
Number of Speeds4 Speeds
Distance Between Rollers - Center to Center5.07" - 5.90"
Number of Rollers3
