Extremely durable cordless mag drill with a FEIN PowerDrive designed for up to 60,000 holes during a 300 h usage period
Small and lightweight machine with up to 25% higher work progress with one-of-a-kind productivity and longer storage battery life as compared to competitors. With an 18 V 8 Ah AMPShare ProCORE storage battery, up to 31 holes per battery charge are possible (Carbide cutter, 11/16" dia., mild steel 1/2")
The lightest cordless mag drill in the world at only 26.9 lbs. This drill features forward/reverse, electronic speed control, and 10-1/4" stroke range for maximum flexibility in all applications (drilling, tapping, twist drilling, reaming and countersinking)
Intuitive operator controls located on the top of the drill motor for maximum visibility
A Convenient magnetic holding force indicator supports the safe positioning of the tool
Workplace Safety: Tilt sensor safety shutoff will shut down the drill in the event it should move or break free from the workpiece
MK2 tool mount for direct use of industrial tools
Secure position thanks to extra narrow permanent magnet with pre-magnetization for convenient and simple alignment
"Memory function" speed storage
COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time
State-of-the-art cell technology and intelligent battery management deliver 87% more power than conventional batteries
CORE 18 V Li-ion battery with Highpower cells, charge indicator and electronic cell protection (ECP). ECP protects batteries against overloading, overheating and deep discharge
Optional using accessory
Maximum performance with AMPShare CORE 18 V 8.0 Ah / 12.0 Ah
Annular cutter HSS 2 in: Extremely shock and impact resistant, it is made for rough use in steel construction and assembly. Thanks to tough cutting edges and excellent HSS steel with a hardness of 64 HRC, the cutter also impresses with maximum service life
Magbrush: Safely remove metal chips and debris from machinery and work areas using FEIN's magnetic brushes. The Magbrush’s slide action lever quickly demagnetizes the tool, which releases chips for disposal
Slugger by FEIN cutting paste is a biodegradable cutting paste that is used when drilling out of position and gravity feed coolant is not an option, used with Slugger cutters, is a water-based fluid designed to extend tool life, improve surface finish and reduce heat build-up when drilling
L-BOXX case system: Clearly arranged, neat, and securely stored. With inserts for small pieces, all our accessories have a home. It is also easy to connect and stack L-BOXXes
Magnet holding force display
Forward/reverse operation
Electronic speed setting
Memory function
Speed-controlled tacho electronics
Tilt sensor

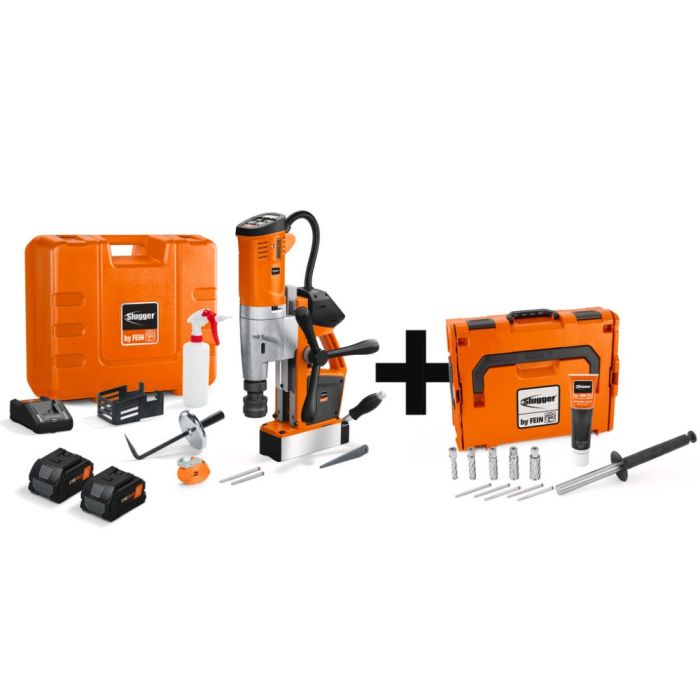

Includes
1 Cordless Magnetic Core Drill
1 Coolant Pump
1 Safety Strap
1 Chip Hook
1 Centering Pin Diameter 1/4 X 3-9/16 [6.35 X 90] in[mm]
1 Centering Pin Diameter 1/4 X 3-1/4 [6.35 X 82] in[mm]
1 Centering Pin Diameter 1/4 X 4 [6.35 X 100] in[mm]
1 Chip Guard
1 Drift
2 Core 18 V / 8.0 Ah Li-ion Batteries
1 Gal18 V-160 as Rapid Charger
1 Tool Case
1 Magbrush
1 Cutting Paste
1 Each Hss Nova 2 in Annular Cutter 2 in [50 Mm] Cutting Depth (ø 9/16, 11/16, 13/16, 15/16, 1-1/16 in)
1 L-boxx 136 for Accessories
Battery Type
Lithium-Ion
Speed (RPM)
130 to 520 RPM
Voltage
18 V
Type
Base Drill Kit
Battery Interface
18 V AMPShare
Motor
Brushless
Tool Mount
MT 2
Carbide Cutter Maximum Diameter
1-3/8"
HSS Cutter Maximum Diameter
1-3/8"
Cutter Maximum Drilling Depth
2" (3"*)
Twist Drill Maximum Diameter
3/4"
Tapping
1/2"
Maximum Countersinking Diameter
1-1/4"
Reaming Maximum Diameter
3/4"
Cutter Holder
3/4" Straight Shank
Cutter Change
Tool-Free
Stroke
5-5/16"
Total Stroke Range
10-1/4"
Magnetic Holding Force
2023 lbs
Magnetic Base Dimensions
7-11/16" x 2-3/4"
Weight without Battery
26.90 lbs
Sound Pressure Level LpA
81.6 dB
Measurement Uncertainty of the Measured Value KpA
5 dB
Sound Power Level LWA
94.6 dB
Measurement Uncertainty of the Measured Value KWA
5 dB
Peak Sound Value LpCpeak
96.2 dB
Measurement Uncertainty of the Measured Value KpCpeak
5 dB
Vibration Value 1 αhv 3-Way
αh,D 0.6 m/s²
Measurement Uncertainty of the Measured Value Kα
1.5 m/s²
Corded or Cordless
Cordless
Application
Mag Base Drilling Metal Up to 1-1/2" Diameter: Well Suitable, Well Suitable: Well Suitable, Twist Drilling With Drill Chuck: Suitable, Suitable: Well Suitable, Twist Drilling With Mt Fitting: Well Suitable, Well Suitable: Well Suitable, Tapping: Well Suitable, Well Suitable: Well Suitable, Countersinking: Well Suitable, Well Suitable: Well Suitable, Reaming: Well Suitable, Well Suitable: Well Suitable, Performing Overhead Work: Suitable Suitable, Well Suitable Well suitable
