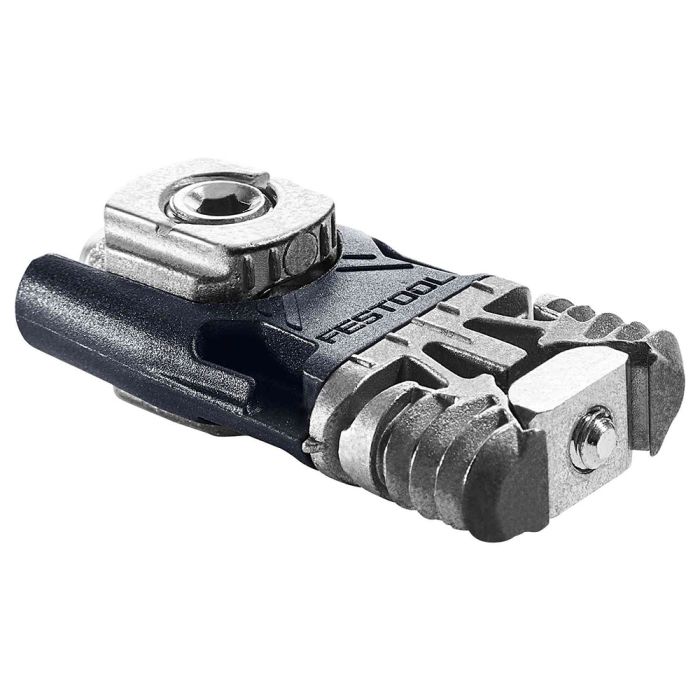

The new Domino basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications – from corner panel joints to centre panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.
WARNING: Proposition 65 Warning for California Residents View Details
The clever Domino system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and we can do it easily on our own.
The flush-screwed fixture elements protect each furniture component from being scratched
Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
The new detachable Domino basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm
The Domino/Domino KV D8/50 connector is positioned both in the cupboard panel and the base of the structure with the Domino jointer DF 500
Systems Get It Done: The new Domino basic structure connectors and furniture connectors can be positioned simply and universally – in combination with Domino or a series of holes
Achieve Ideal Results More Quickly: Because of its high tolerance compensation and high stability, the stable yet detachable Domino jointing system enables seamless assembly and disassembly of a piece of furniture – in the workshop as well as with the customer
Convenient and Safe: All joints are simple and quick to machine like usual using the Domino DF 500 joining machine – no additional special machine is required
With the Domino jointer DF 500: All joints can be produced quickly and easily with the Domino DF 500 joining machine
Finished in Just Three Steps: With only two Domino routed holes and one drilled hole, the corner joint is produced quickly and without additional measurements
It could not be Easier: There is no easier way of producing a detachable corner joint. The drill template – which can be used with an extraction system – specifies the exact position of the drilled hole and the correct drilling depth, therefore guaranteeing error-free work
Optimum Strength: The split anchor provides the joint with optimum strength and ensures that the corner joint has a high level of stability
Different Material Thicknesses. No problem: All material thicknesses between 18 mm and 28 mm can be machined effortlessly with the connectors
Includes
50 x Split Anchor
50 x Bolt with M4 Thread
50 x Plastic Trays
50 x Cross Anchor with Threaded Pin
Without Cover Caps
Application
Detachable Corner Connector with the DOMINO Router, Furniture Manufacture
