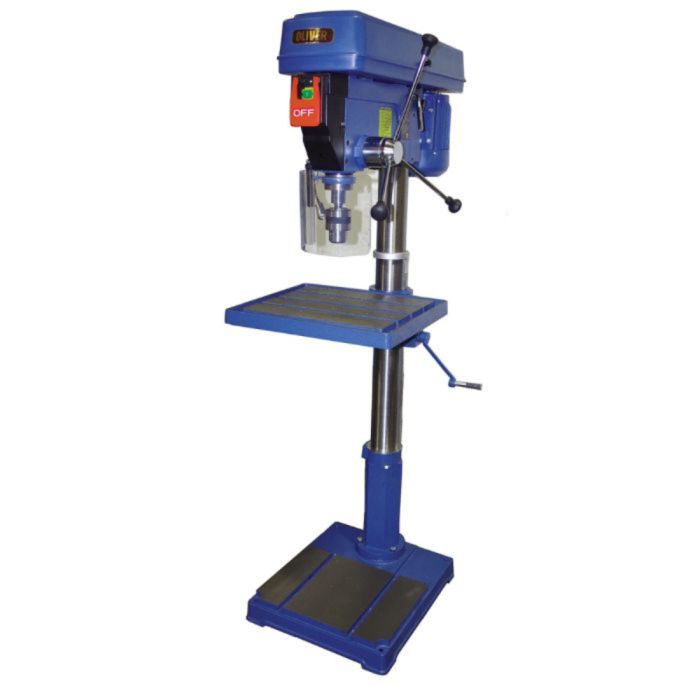

Oliver Machinery 10063.001, 22" Swing Floor Model Drill Press
Ships direct from manufacturer
Line interrupt switch requires manual start in the event of a power loss.
Spindle is supported by high quality sealed ball bearings.
LED lamp provides a well lit work area.
Table rotates 360° and tilts 45°.
Crank operation moves table up and down with locking clamp.
Precision ground table features T-Slots.
Laser pointer is built-in for precise repeat drilling.
Drill chuck guard included with safety interlock.
3/4” chuck and key holder included.
Cast iron pulleys reduce vibration.
Positive depth stop allows repeated operations with ease.
Powerful 1-1/2 HP Motor.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Oliver Machinery |
| Condition | New |
| Motor Phase | 1 Ph |
| Speed (RPM) | 180 to 3,420 RPM |
| Type | Drill Press |
|---|
| Floor Type | 14" Floor |
|---|
| Swing | 22" |
|---|
| Drilling Capacity | 1-1/4" |
|---|
| Chuck Capacity | 3/4" |
|---|
| Chuck Taper | JT-3 |
|---|
| Table Size | 16" x 18-1/2" |
|---|
| Table Tilt | +/- 45 Deg |
|---|
| Spindle Taper | MT-3 |
|---|
| Spindle Travel | 4-1/2" |
|---|
| Spindle Speeds | 12 |
|---|
| Spindle to Table | 26-3/4" |
|---|
| Spindle to Base | 48" |
|---|
| Column Diameter | 3-7/8" |
|---|
| Base Size | 19-5/8" x 22-3/4" |
|---|
| Overall Height | 68-3/4" |
|---|
| Motor | 1.5HP, 1Ph, 115V (21 Amps) |
|---|
| Weight | 380 lbs |
