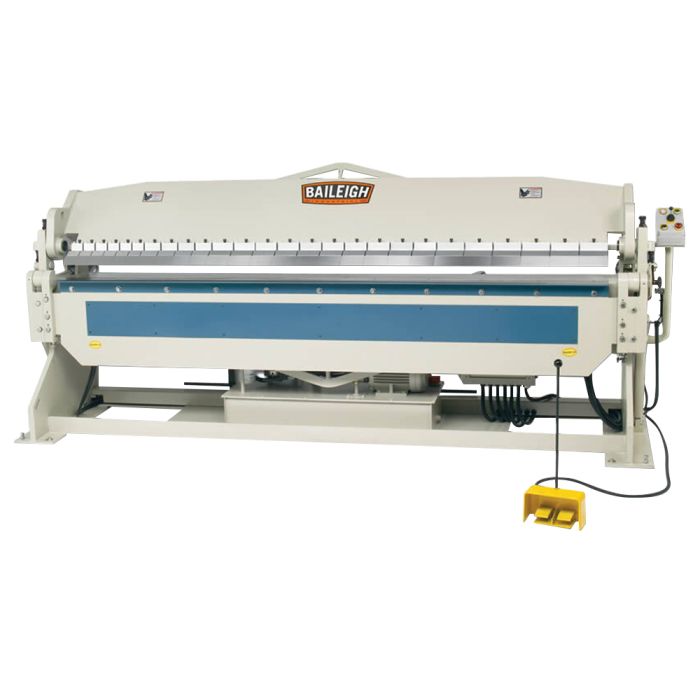

Baileigh Industrial 1020998 BB-12010H Hydraulic Sheet Metal Brake Ships direct from manufacturer
This hydraulic box and pan brake will offer years of profitable service in any production shop. A fully-welded steel plate frame ensures accuracy when bending heavy gauges.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New Features
Bends 10 gauge mild steel and 12 gauge stainless steel or lighter
10 feet (120”) bending length
Industrial-grade hydraulic systemdoes all of the following
Clamps the material at the fingers
Lifts the bend eaf to the pre-set bend angle
Opens the beam when the bend is complete
Hydraulically-driven bend leaf
Made using only the most durable and high-quality electrical components
Includes 26 hardened fingers in assorted sizes (6 of 3", 4 of 4", 10 of 5", and 6 of 6"); adjust them for different box and pan applications
Adjustable auto-stop: just dial in the bend degree when using the hydraulic bending brake in manual or semi-automatic mode
Variable bend speed and clamping pressure adjustment give you control over the material
You can operate the machine by toggle from the console, or by using the foot pedal controls
Semi-automatic bending mode with foot pedal control will increase productivity, reduce operator effort, and streamline production runs
Material thickness adjustment enables you to take on many gauges of sheet metal and easily switch between them
Greaseable joints and filtered hydraulic system enable this sheet metal brake to work smoothly for years
Electro-welded steel frame, with massive truss rods, minimizes deformation when bending at full capacity
Extra-rigid base design supports the weight of heavier materials
1-year parts Warranty
Motor Phase 3 Ph Stationary type Metal Brake
Motor 5 Hp Min Reverse Bend 0.984" Thickness (SS) 10 Gauge (12 Gauge) Box Depth 6" Beam Adjustment 1" Bend Angle 0 – 135 Deg Finger Sizes 3" - 4" - 5" - 6" Voltage 220 V
