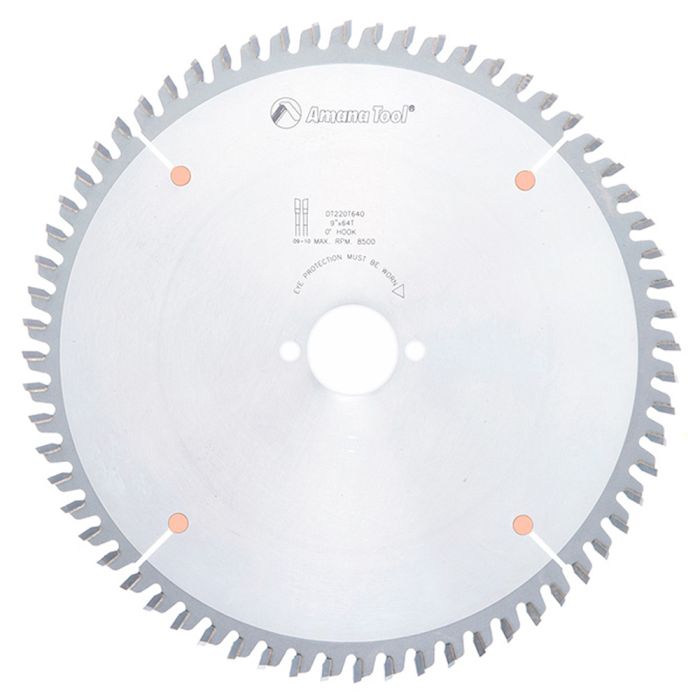

Amana Tool DT220T640 Ditec 8-5/8" Holz-Her General Purpose Saw Blade

SKU

DT220T640

$185.45

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

If you cut melamine on a regular basis, this is the blade you should use. It has the same features as our regular melamine blades – the MB series and MSB series – such as thicker than standard plate, high tooth count, and the H-ATB grind, but this blade has long-lasting Ditec carbide tips.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Amana Tool Corp.
Condition	New
UPC	73868537220
Features	Exclusive Ditec carbide tips Higher reliability and lower maintenance Low noise level Laser cut saw bodies Excellent cutting quality For maintenance grinding, use fine grit (D400 to D600) diamond wheels To match the factory grind, use a slower than normal feed rate Damaged teeth can be replaced by any grade of carbide tooth Replacing of a large number of teeth will, of course, shorten the life of the saw blade Since the carbide in the Ditec is harder than other carbides, it is critical that you protect them from “thermal shock” if an adjacent tooth is replaced Heat absorbed during the brazing process will seriously degrade the Ditec carbide Designed specifically for the Holz-Her 220 mm panel saws
Application	Melamine Single and Double Sided, Ditec Melamine
Bore	30 mm
Diameter(D) mm	220 mm
Grind	High Alternate Top Bevel (H-ATB)
Hook(a°)	0 Deg
Kerf(B) Inch	0.126"
Kerf(B) mm	3.2 mm
Material	Carbide Tip
Pinholes	2/7/42
Plate(C) Inch	0.079"
Plate(C) mm	2 mm
Teeth	64
Tool No.	DT220T640

Blade Diameter	8-5/8"
Teeth per Inch	64
Arbor Size	30 mm
Tooth grind	High Alternate Top Bevel (H-ATB)
Hook Angle	0 Deg
Blade thickness (Kerf)	0.126"
Plate	0.079"
Blade Type	Holz-Her General Purpose Saw Blade
Pinholes	2/7/42
Max. RPM	8,500 RPM
