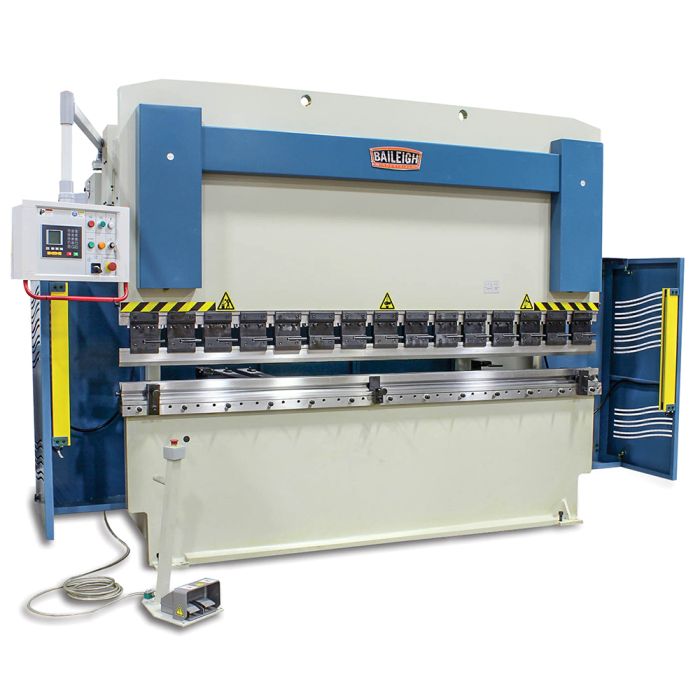

Baileigh Industrial 1000791 BP-22413 CNC Hydraulic Press Brake Ships direct from manufacturer
To bend 10-foot metal sheets, this industrial press brake uses a durable Vickers/Eaton pump. Anyone can learn to program the controller. The rigid steel frame maintains accuracy.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New Features
Offers 13-foot length (157") and 123" of distance between the housings
This press brake is also available in a 10-foot version
Industrial-grade hydraulic system with a Vickers/Eaton pump will keep the machine running smoothly and reliably
Torque tube connects the 2 hydraulic cylinders, so they stay synchronized and parallel to the bending table at all times
Chain drive linkage keeps hydraulic cylinders in time with each other, so the machine stays balanced and lasts longer
Hydraulic cylinders are near the back of the machine for convenient fluid changes
This hydraulic press brake ships fully assembled
Just uncrate it, plug it in, and get started
We keep machine handling to a minimum to reduce the risk of damage
The flatbed truck that leaves our facilities is the one that shows up at your door
We offer a 1-year parts warranty
Accurate, User-Friendly Control System Runs in single-bend mode or programmable mode
Comes standard with 2 axes of control: stroke and back gauge distance
Controller is so simple that you could train someone to use it in 5 minutes
Programmer stores up to 40 programs with up to 25 bends per program, great for saving time on production
Bending is accurate to +/- .01mm, ensuring that parts come out right the first time
Main electrical components made in Germany by Weidmueller and Schneider will give you years of trouble-free productivity
Foot pedal brings the stroke up and down
Just input your specs on the controller, then press the pedal for each bend
You can make a complete part without touching the controller
Push the metal in while pressing the foot pedal
Choose between 2 speeds: a rapid approach and retract and a slow bending speed
Speed option lets you reduce cycle time and make your shop more efficient
Chain drive back gauge system uses tried-and-true technology that you can maintain easily
The 23.62" back gauge can advance or retract according to programmed instructions
Steel Plate Construction And Included Tooling Fully-welded all-steel construction helps prevent deformation and minimize flex during the bending process
Weighs a whopping 24,640 lbs. for massive structural strength that ensures accurate results
Includes support arms around 2 feet in length
Comes standard with tooling: a multi-Vee bottom die and gooseneck punches (European Style)
Quick-release tool holders let you make changes easily
Just open a lever and it drops the top die out. No time-consuming cap screws
Crowning adjustment dial gives you the option to deliver more pressure in the center of a bend for consistency all the way across
Safety light curtains prevent the machine from bending when someone is too close
Light curtains will swing open and get out of the way when you’re doing a tool change
Video VIDEO
Motor Phase 3 Ph Stationary type Press Brake
Table Length 125/157" Back Gauge Length 17144 Maximum Pressure 224 Tons Throat Depth 12.5" Stroke Distance 7" Approach Speed 2.0" / Sec. Back Gauge Motor 1/2 Hp Bending Speed 0.236" / Sec Main Motor 15 Hp Distance Between Housings 100/123" Distance From Table To Ram 19.6" Voltage 220 V
