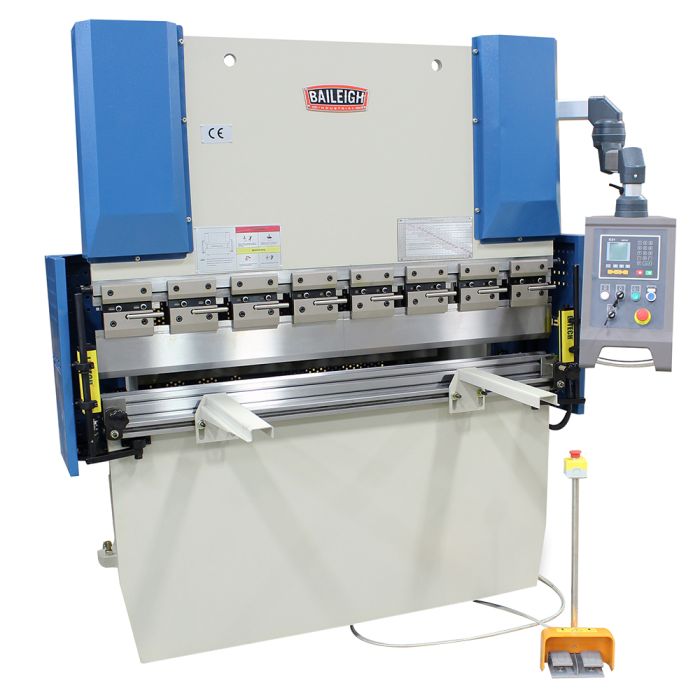

Baileigh Industrial 1020680 BP-3305CNC CNC Press Brake Ships direct from manufacturer
Need high production in a limited space. This CNC hydraulic press brake offers programmable controls, top-quality components, and heavy steel construction for an unbeatable price.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New Features
BP-3305CNC delivers 33 tons of pressure across its 63 inch table
Easy-to-use programmable 2-axis Estun E21 controller is integrated right from the factory
Internal memory can hold 40 programs, each with its own unique number for easy identification
Controller will keep a piece count for large production runs
Made with NOK, Siemens, and Omron components
Foot pedal lets you control all bending functions, whether on full auto or jog mode
Fully welded steel plate frame minimizes deflection and maintains rigidity
Gooseneck punch and a 4 sided multi-V bottom die come standard
Integrated safety light curtains help prevent accidents
Covered by a 1-year parts warranty
Video VIDEO
Motor Phase 3 Ph Stationary type Press Brake
Table Size 63" x 7" Programming 40 Programs/ 25 Steps per Program Back Gauge Length 21.5" Return Speed 3.3" / Sec. Pressure 33 Tons Included Tooling 78 Deg Gooseneck & Multi-Vee Die (5/16", .39", .47", 5/8", .94", 1-1/4", 2") Throat Depth 8" Stroke Distance 3.15" Approach Speed 3.5" / Sec Back Gauge Motor 1/2 Hp Bending Speed 0.394" / Sec. Main Motor 7.5 Hp Distance Between Housings 51.25" Distance From Table To Ram 13.325" Voltage 220 V
