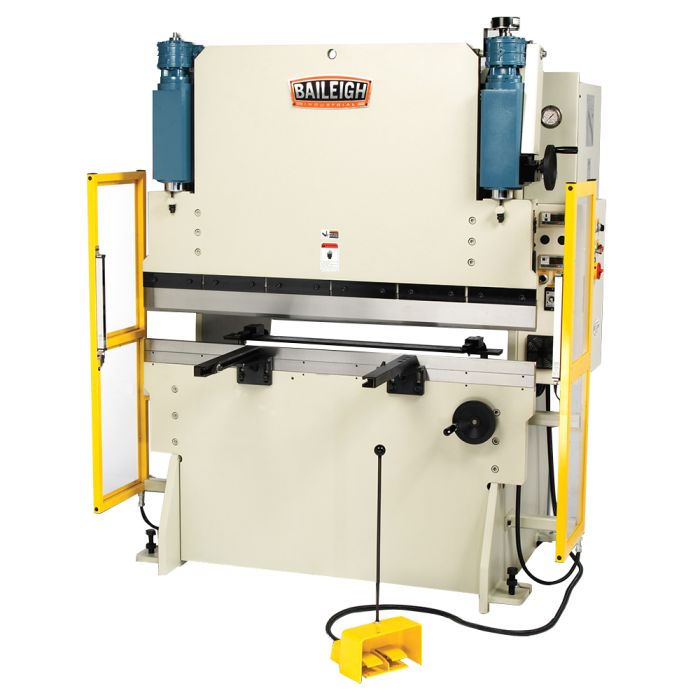

Built with a steel frame, this hydraulic press brake runs smoothly in production and makes crisp bends. We designed this machine for simplicity. You can learn to use it in 5 minutes.
WARNING: Proposition 65 Warning for California Residents View Details
Maximum capacity of 0.078" thick sheet metal across the machine’s full width
Comes covered by a 1-year parts warranty
Powerful, Easy-To-Use Hydraulic System
Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production
2 encoder-controlled hydraulic cylinders move the top beam
Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time
It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel)
You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape
2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam
Foot pedal brings the stroke up and down, leaving your hands free to position the material
Motorized back gauge rides on a solid ball screw trolley mechanism
Back gauge encoder shows its position on its own DRO
Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine
Rigid Structure And Low Maintenance
Heavy electrowelded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years
Rugged 3,300-pound construction supports the hydraulic pressure, so the machine stays strong at full capacity
Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke
Includes a set of hardened single-Vee American tooling
Accepts standard press brake tooling, giving you a wide variety of options
Comes with front material rests (or support arms), which some competing machines do not include
6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam
4 grease zerks let you add oil every few months
Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months
