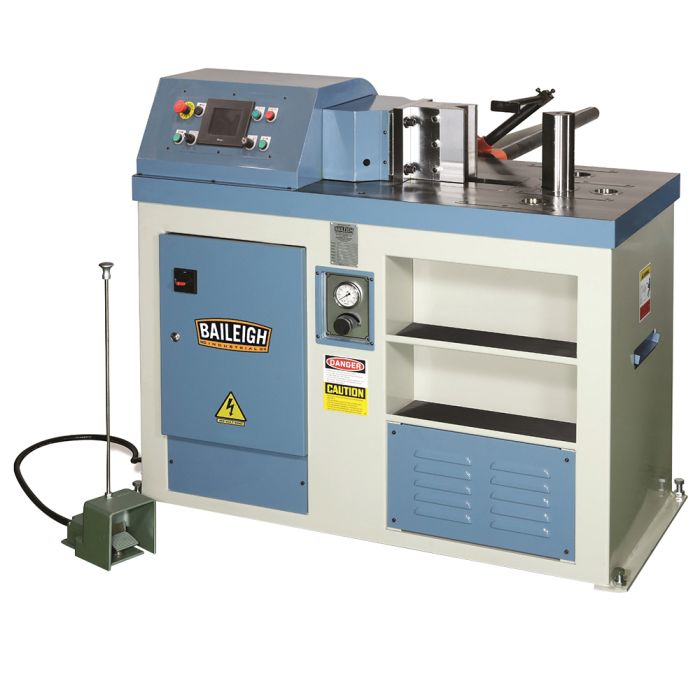

Baileigh Industrial 1004703 HPB-45NC Horizontal Press Brake Ships direct from manufacturer
This Baileigh horizontal press brake machine can bend, punch, and shear with the right tooling. You can easily make small parts, like flanges and brackets, because material lies on a flat surface.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New Features
Industrial-grade hydraulic system is located on top of the metal press brake to reduce flex
You can adjust the pressure of the the hydraulics for your material
Designed for simple operation. In 15 minutes, anyone could learn to run it
Numerical control (NC) programmer can store up to 50 programs with 10 bends per program
Electronic encoders make this hydraulic press brake accurate to +/- .002 inch
Product counter makes production runs more efficient
Control the bending stroke with 2 buttons or with the foot pedal, so your hands are free to guide the material
You can also run the metal press brake in a manual mode for one-off projects as well as set-up
Robust manual back gauge bolts to the machine and helps with repeatability
Machined table, 36" high, keeps your material perfectly level
No need to hold one side and hope it’s lined up
Quick-release tooling system makes changes fast and simple
Just turn the handle and the post will lift
The V die slides in and out
Accepts attachments for punching, straightening, shearing, and even pipe bending
Includes 80mm single-V tooling (V-opening die and V post)
2,266-pound steel frame, made from 4 powerful pieces of inch-thick flat bar, will keep results accurate for many years and won’t flinch under pressure
Shelving in the front can hold tooling and items you might need on a daily basis
This Baileigh horizontal press is covered by a 1-year parts warranty
Video VIDEO
Motor Phase 3 Ph Stationary type Press Brake
Return Speed 0.78" / Sec. Motor 5 Hp Pressure 45 Tons Punch Height 7.875" Working Speed 0.51" / Sec. Stroke Accuracy +/– .002" Stroke Length 9.84" Table Height 36.61" Approach Speed 1.5" / Sec. Fixture Holes Diameter (1) at 3.268" / (3)at 2.283" Voltage 220 V
