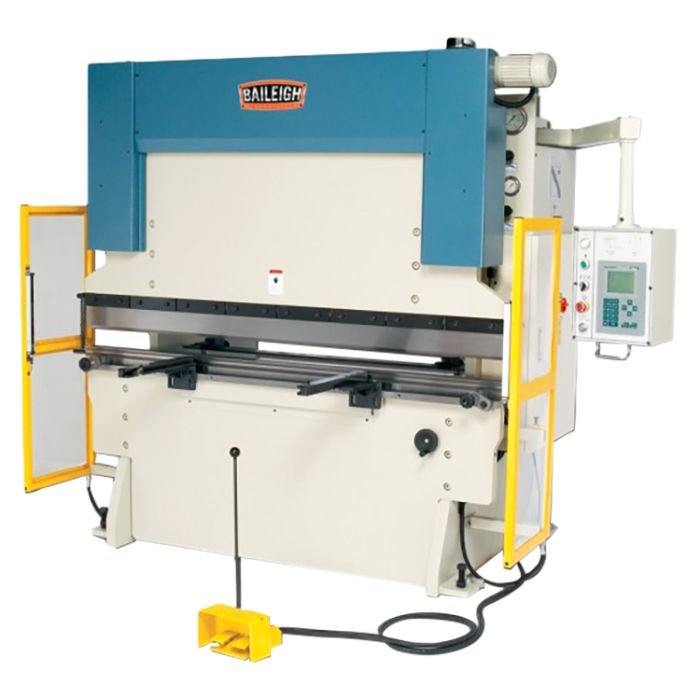

With hydraulic auto-crowning and a rigid steel frame, this hydraulic press brake makes crisp bends. A Delem touchscreen controller lets you program the stroke and back gauge.
WARNING: Proposition 65 Warning for California Residents View Details
You can measure and adjust the pressure for your application
2 industrial-grade hydraulic cylinders raise and lower top beam through a servo motor
Mechanical stops inside hydraulic cylinders ensure an accurate bend angle
Digital encoders control the beam depth and back gauge positions
Separate digital readouts (DROs) show the stroke and back gauge positions, so you can make precise repeat bends
Parallel hydraulic mechanism synchronizes both sides, so that the machine stays true and the motions are balanced through each stroke
Top beam travels up and down using several 3-axis bearings coupled to a hardened rail system
Touchscreen Delem controller holds 100 programs with up to 25 bends per program
Programmable system is easy to learn
You could teach someone how to to use this machine in around 15 minutes
Pendant control box conveniently swings away from the machine
You can program the back gauge, moved by a servo motor with an encoder, through the Delem console
Finite manual adjustments also allow you to raise or lower the back gauge
Hydraulic auto-crowning creates consistent bends across the maximum width of the machine and prevents underbending in the middle
Covered by a 1-year parts warranty
This industrial press brake ships fully assembled and loaded with a set of multi-Vee tooling
Heavy Construction for Accuracy and Safety: Thick electrowelded plate steel framework gives this machine the structural strength to deliver accurate results, day in, day out, for years. Weighs 8,800 lbs., so this press brake won’t buckle under pressure even at maximum capacity. Includes front material rests. 6-sensor light curtain keeps you safe by preventing the press brake from running if anyone is standing too close. Inside lighting helps you see what you’re bending
