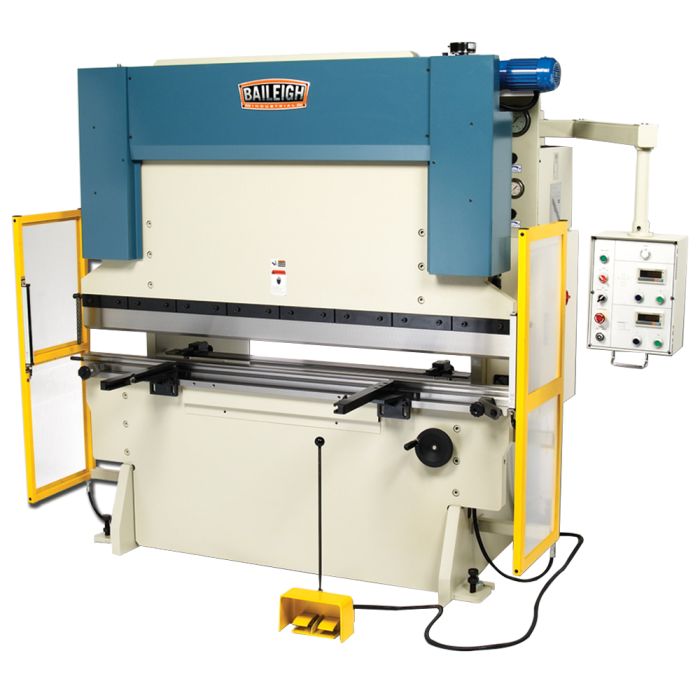

Baileigh Industrial 1000839 BP-9078NC Hydraulic Press Brake

SKU

BA9-1000839

$92,949.00

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

Largest NC hydraulic press brake weighs 8,800 lbs with a rigid steel frame. The encoder-controlled stroke and back gauge system offers 2 DROs and takes just 5 minutes to learn.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Baileigh Industrial
Condition	New
Features	Bends sheet metal up to 78" wide Powerful, Easy-To-Use Hydraulic System Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production 2 encoder-controlled hydraulic cylinders move the top beam Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel) You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend won't lose its shape 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam Foot pedal brings the stroke up and down, leaving your hands free to position the material Motorized back gauge rides on a solid ball screw trolley mechanism Back gauge encoder shows its position on its own DRO Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine Comes covered by a 1-year parts warranty Rigid Structure And Low Maintenance Heavy electrowelded frame, made of solid steel, enables this press brake to stay accurate and run smoothly in production for many years Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke Includes a set of hardened single-Vee American tooling Accepts standard press brake tooling, giving you a wide variety of options Comes with front material rests (or support arms), which some competing machines do not include 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam 4 grease zerks let you add oil every few months Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months
Motor Phase	3 Ph
Stationary type	Press Brake

Back Gauge Length	17144
Return Speed	2.36" / Sec.
Motor	10 Hp
Oil Capacity	45 Gal
Throat Depth	7.87"
Stroke Distance	5.9"
Table Width	6.29"
Approach Speed	3.14" / Sec.
Back Gauge Motor	1/2 Hp
Bed Length	17145
Bending Speed	0.236" / Sec
Maximum Capacity	90 Tons
Distance Between Housings	61"
Distance From Table To Ram	11.81"
Voltage	220 V
