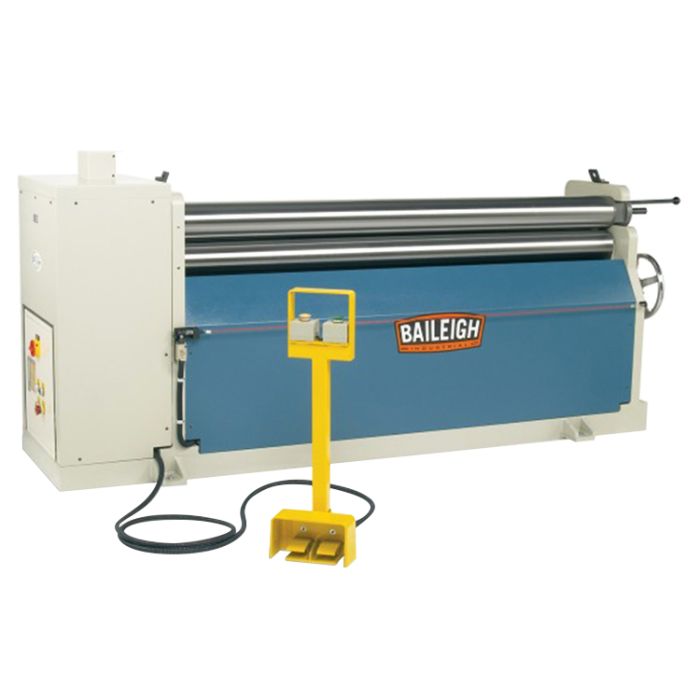

Baileigh Industrial 1006577 72" PR-609 Plate Roll Ships direct from manufacturer
This plate roll’s industrial-grade hydraulic system and welded steel frame offer enough power to handle 9 gauge mild steel all day long. All functions are hydraulically controlled for reliability.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New Features
Hydraulic system controls the back roll
Foot pedestal allows you to easily control some bending functions; forward, reverse, up, and down
Simple release mechanism on the top roll to release work that has been wrapped around the top roll
Digital readout shows you the back roll’s exact position the whole time
Fully integrated plate steel frame keeps the forming rolls perfectly in alignment during the bending process
Dual emergency stop cables are located on the back and front of the machine
Covered by a 1-year parts warranty
Horsepower 3 HP Motor Phase 3 Ph Stationary type Plate Roll
Forming Width 72" Roll Speed 4.67 RPM Upper Roll Diameter 5.91" Roll Adjustment Back Hydraulic Minimum Forming Diameter 8.86" Voltage 220 V Capacity (Mild Steel) 9 Gauge. (0.150")
