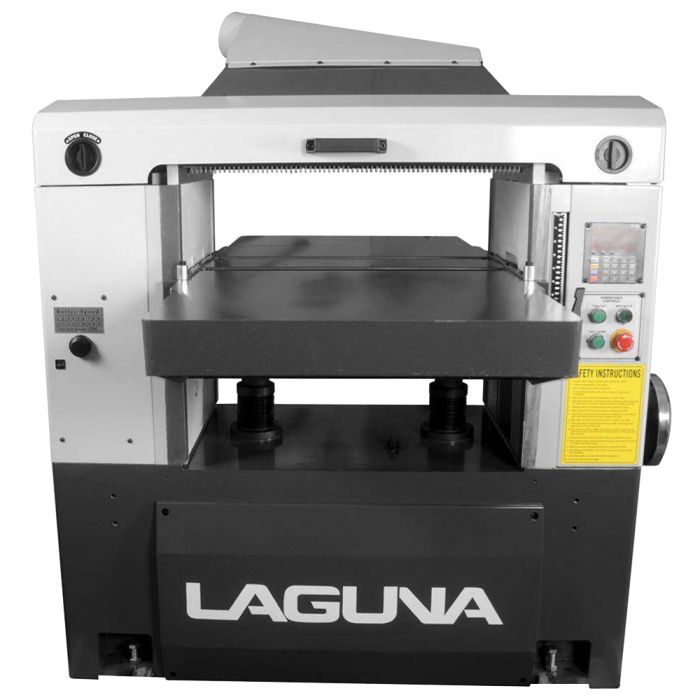

Laguna MPLAN25-10-1-0130 ShearTec II 25" Single Phase Industrial Planer, 10HP

SKU
MPLAN25-10-1-0130
$17,999.00
Ships direct from manufacturer?
The Industrial 25 inch Planer brings a whole new standard for heavy duty thickness planers. The 10HP 1 Phase motor makes sure you never run out of power even when planning full 25 inch boards. Oversized bearing housings ensure ultra smooth, quiet performance and long life. Most thickness planers in this class have only 2 or 4 speeds and it seems they never have the right speed for the job. The Laguna 25 inch comes standard with electronic variable speed meaning you will always have the exact speed required. Another feature not normally found in this class is the standard PLC control which allows you to simply enter in the desired height and the bed moves automatically to that setting. You’ll never want to go back to turning a hand wheel to find your thickness (or even holding down a button for that matter!). The PLC in the Laguna Industrial 25 inch planer also has automatic backlash compensation ensuring exact thicknesses.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerLaguna
ConditionNew
UPC00195444075452
Features
  • DRO (Digital Read Out)
  • PLC Programmable Height Setting
  • Push-Button Height Setting
  • Manual Back-Up Height Setting
  • Segmented Pressure Bar
  • Retractable Table Rollers: Adjustable
PDFs
Horsepower10 HP
Motor Phase1 Ph
Stationary typeShear Tec
Voltage220 V
Speed (RPM)4,800 RPM
Recommended Breaker49 amps
Cutter Head Diameter3 1/2"
Table Dimension52" x 26"
Maximum Stock Thickness9"
Minimum Stock Thickness1/8"
Maximum Stock Width25"
Minimum Stock Length10"
Motor Feed3/4" HP, DC
Motor Vertical Feed3/4" HP, AC
Maximum Stock Removal (01-12" Wide)1/4"
Maximum Stock Removal (12-25" Wide)1/8"
Dust port5"
