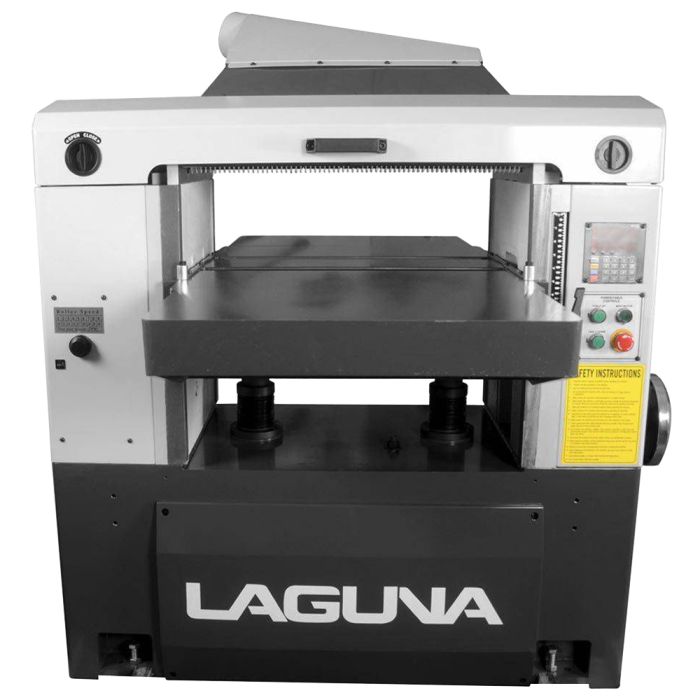

Laguna MPLAN25-15-3-0130 25" Three Phase Industrial Planer

SKU
MPLAN25-15-3-0130
$17,999.00
Ships direct from manufacturer ?

The P|25 Planer brings a whole new standard for Heavy Duty thickness planers. The 15HP 3 Phase motor makes sure you never run out of power even when planing full 25 boards. Oversized bearing housings ensure ultra-smooth, quiet performance and long life. Most thickness- planers in this class have only 2 or 4 speeds and it seems they never have the right speed for the job. The Laguna 25" comes standard with Electronic Variable Speed meaning you will ALWAYS have the exact speed required. Another feature not normally found in this class is the standard PLC control which allows you to simply enter in the desired height and the bed moves automatically to that setting. You’ll never want to go back to turning a hand wheel to find your thickness (or even holding down a button for that matter). The PLC in the Laguna Industrial 25" planer also has automatic backlash compensation ensuring exact thicknesses. Of course no world class planer would be complete without our incredible ShearTec II cutter head, which boasts 6 rows of 4 sided German carbide inserts for a total of 174 knives

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerLaguna
ConditionNew
UPC00195444075469
Features
  • Motor Feed: 3/4 HP, DC electronically variable speed
  • Motor Vertical: 3/4 HP, AC
  • DRO (Digital Read Out)
  • PLC programmable height setting
  • Push button height setting
  • Manual back up height setting
PDFs
Video

Horsepower15 HP
Motor Phase3 Ph
Voltage220 V
Table Length Size52"
Table Width Size26"
ShearTec II Cutterhead6 Row 174 Insert Knives
Cutter Head Diameter3 1/2"
Cutter Head Speed (RPM)4,800 RPM
Knives174 ShearTec II, 4 Sided, Solid Carbide
Segmented In Feed Roller3"
2 Polished Out Feed Rollers3"
Retractable Table Rollers Adjustable
In/Out Feed Cast Extensions Included(LxW)10" x 26"
Weight1500
TypeIndustrial Planer
Dust port5"
