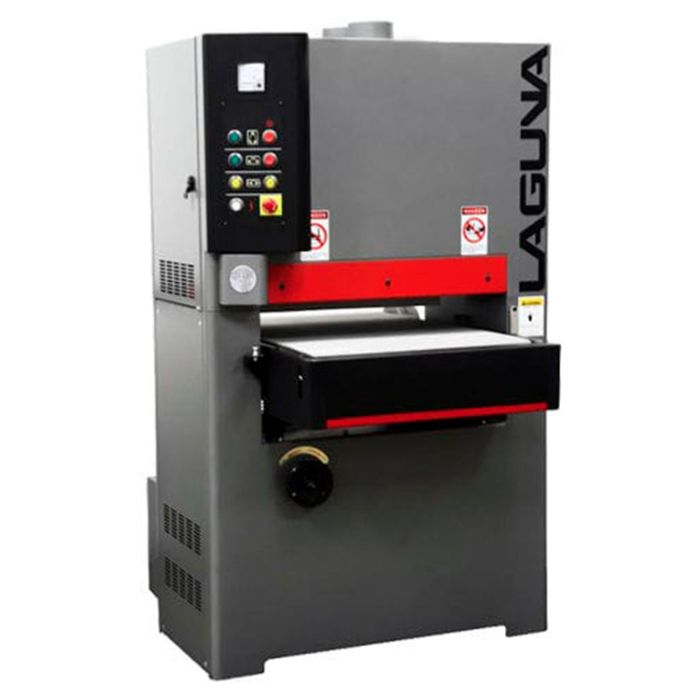

Laguna MSANWB25X60-1K-7.5-0197 25" Compact 1K Widebelt Sander

SKU
MSANWB25X60-1K-7.5-0197
$14,999.00
Ships direct from manufacturer ?

Laguna’s all new compact widebelt sander is perfect for the shop looking for an industrial quality sander at an affordable price. The Compact is impressive in its offerings: 60″ belt length with Automatic Pneumatic Oscillation, 2 feed speeds, industrial cast iron bed sitting on 4 Acme threaded screws with center alignment designed for precision results even when handling heavy material. The bed is adjustable with electronic motor and manual handle for micro movement. Industrial quality carpet offers the perfect balance between grip & rigid support. The platen is fully adjustable enabling you to run in combination with the 4″ rubber drum for optimum results. Raise it and use the drum alone to dimension wood. Lower it to sand sensitive material such as veneer without the risk of going through the material. Don’t let the price fool you, this is a serious piece of machinery!

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerLaguna
ConditionNew
UPC00195444076244
Horsepower7.5 HP
Motor Phase1 Ph
Bed AdjustmentElectric, 0.33 HP Motor
Micro AdjustManual Handle
ConfigurationCombo Head, Roller and Platen
PlatenFelt and Graphite, Fully Adjustable with Scale
Safety BarFront of Bed, Stops Belt
OscillationPneumatic, Adjustable
BrakeMain Motor, Air Disc
CSAFully Certified
Voltage220 V
Frequency60 Hz
Conveyor22 and 49 FPM Gear Change, 1 HP
Minimum Bed Height32"
Maximum Bed Height38"
Maximum Capacity Thickness5.9"
Maximum Width Capacity24 3/8"
Belt Size25" x 60"
Drum 4 x 26" Rubber Roller
Speed1750 RPM
Air Pressure75 PSI
Dust Port Size5"
Number of Dust Port2
Foot Print20" x 40"
Total Size (W x D)40" x 50"
Height Included Dust Ports66 1/4"
Weight1650 lbs
TypeWidebelt
