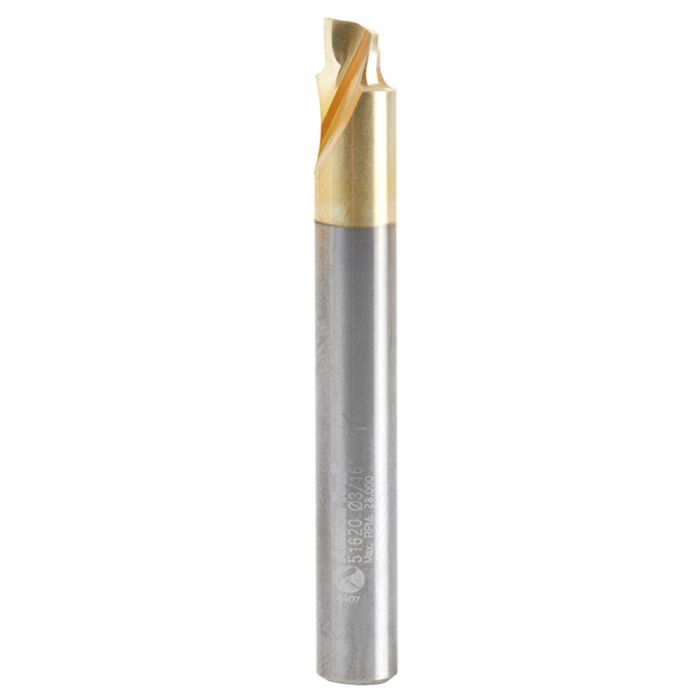

Amana Tool 51620 3/16" Solid Carbide ZrN Coated End Mill Up-Cut Router Bit

SKU
51620
$67.25
Ships direct from manufacturer?
Designed to route a finished appearance into aluminum, brass, copper and non-ferrous metals in one pass, these Amana Tool end mills utilize the ‘O’ flute up-cut design for a super-clean finish. By combining the up-cut design along with the common 3/32 inch convex radius, you can maximize your efficiency by routing one single pass. The Zirconium Nitride (ZrN) coating creates a harder and tougher cutting ceramic over carbide edge allowing for a prolonged cutting edge life and helps to prevent the build-up/galling of material in the flutes while cutting. Amana’s combination end mill/router bits offer the flexibility to cut the radius along with the proven performance of the up-cut design for superior chip ejection.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868529516
Features
  • Amana’s combination end mill/router bits offer the flexibility to cut the radius along with the proven performance of the up-cut design for superior chip ejection
ApplicationAluminum, Aluminum 5052, Brass, Copper, Fomex with Aluminum Face, Gold, Non-Ferrous Metals, Silver, Acrylonitrile-Butadiene-Styrene (ABS), Lexan
TypeRouter Bit
MaterialSolid Carbide
Diameter(D)3/16"
Cutter Height(B)3/32"
Shank(d)1/4"
Overall Length(L)2"
Flutes1
DirectionUp-Cut
Radius(R)3/64"
Max. RPM28,000 RPM
CoatingZrN Coated
