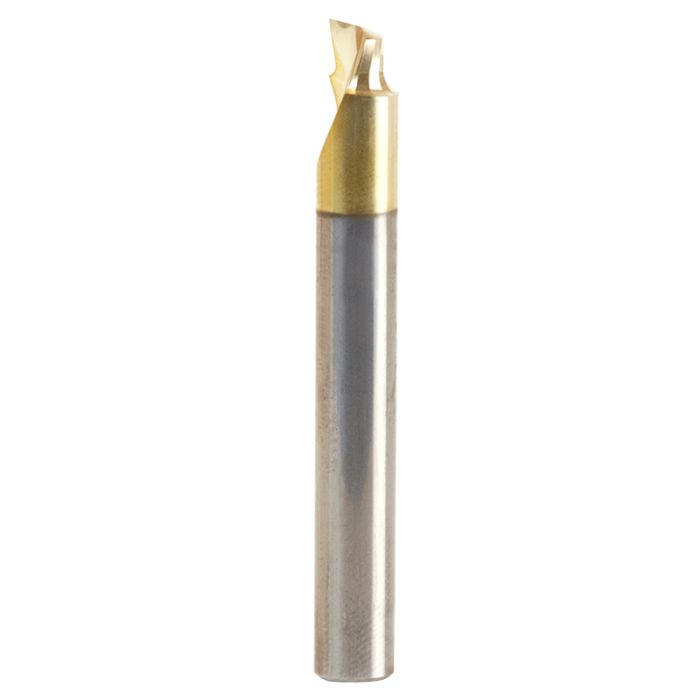

Amana Tool 51622 3/16" Solid Carbide ZrN Coated Up-Cut End Mill

SKU
51622
$68.79
Ships direct from manufacturer?

Designed to route a finished appearance into aluminum, brass, copper & non-ferrous metals in one pass, these Amana Tool end mills utilize the ‘O’ flute up-cut design for a super-clean finish. By combining the up-cut design along with the common 3/32” convex radius, we can maximize our efficiency by routing one single pass.

The Zirconium Nitride (ZrN) coating creates a harder and tougher cutting ceramic over carbide edge allowing for a prolonged cutting edge life and helps to prevent the build-up/galling of material in the flutes while cutting.

Amana’s combination end mill/router bits offer the flexibility to cut the radius along with the proven performance of the up-cut design for superior chip ejection.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868522516
Flutes1
MaterialSolid Carbide
Type End Mill
Direction Up-Cut
Diameter (D) 3/16"
Radius (R) 3/64"
Cutting Height (B) 1/8"
Shank Diameter (d) 1/4"
Overall Length (L) 2"
Coating Zirconium Nitride (ZrN)
Operating Speed (RPM) 18,000 RPM
Feed Rate Inch/Min / Chip Load Per Tooth (Aluminum, Brass, Copper) 9" - 36" / 0.0005" - 0.002"
Feed Rate Inch/Min / Chip Load Per Tooth (Plastic) 36" - 90" / 0.002" - 0.005"
Application For Cutting Aluminum, Aluminum 5052, Brass, Copper, Fomex with Aluminum Face, Gold, Non-Ferrous Metals, Silver, Acrylonitrile-Butadiene-Styrene (ABS), Lexan
