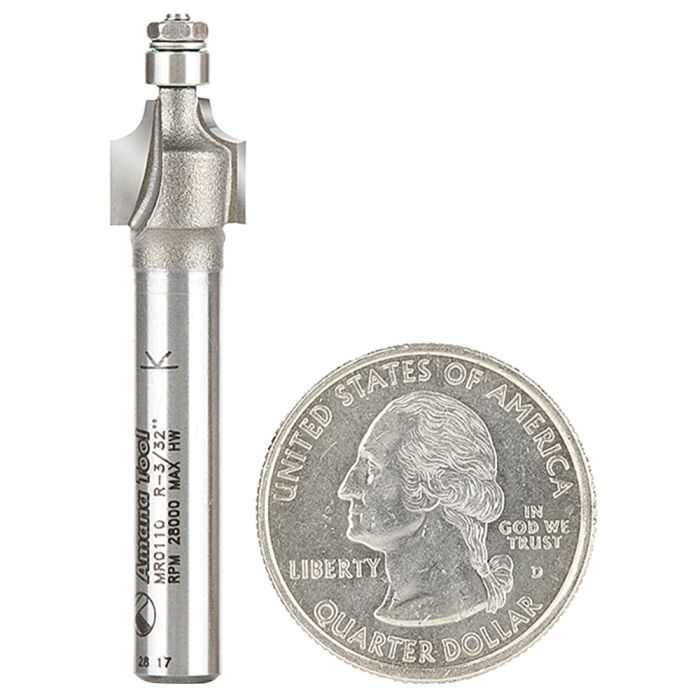

We've created the smallest guide bearings in the industry! If we've often wanted to trim and shape small details in tight corners, but were disappointed by the scoring and burning left behind by solid pilot bits, we've got what we've been looking for: eight of the most commonly used profiles in miniature sizes – complete with tiny miniature ball bearing guides. Don't let the small size fool us; these bits are precisely machined and carbide-tipped.
Recommendation: The miniature router bits with 3/16” and 1/4” diameter ball bearing guides were designed for use in intricate and delicate projects with or without tight spaces. Do not cut material more than half the diameter of the bearing and slow down feed to reduce load. Not guaranteed due to their extremely small size.
WARNING: Proposition 65 Warning for California Residents View Details
Rout the most intricate contours for delicate projects
Replacement Bearing
47775
Flutes
2
Material
Carbide Tip
Type
Router Bit with Lower Ball Bearing
Diameter (D)
3/8"
Inner Diameter (D1)
3/16"
Radius (R)
3/32"
Cutting Height (B)
3/8"
Shank Diameter (d)
1/4"
Overall Length (L)
1 13/16"
Style
Miniature Corner Rounding
Maximum Speed (RPM)
28,000 RPM
Application
For Small Fine Work Such as Signs, Lettering, Small Boxes, and Fine Musical Instruments Such as Guitar making/Luthier, Crafters, Hobbyists and Toymaking; Essentially any Project that Requires Tiny Flush Trimming or Shaping. And for Cutting Acrylic, Laminate, MDF/HDF, Melamine, Wood, Plywood
