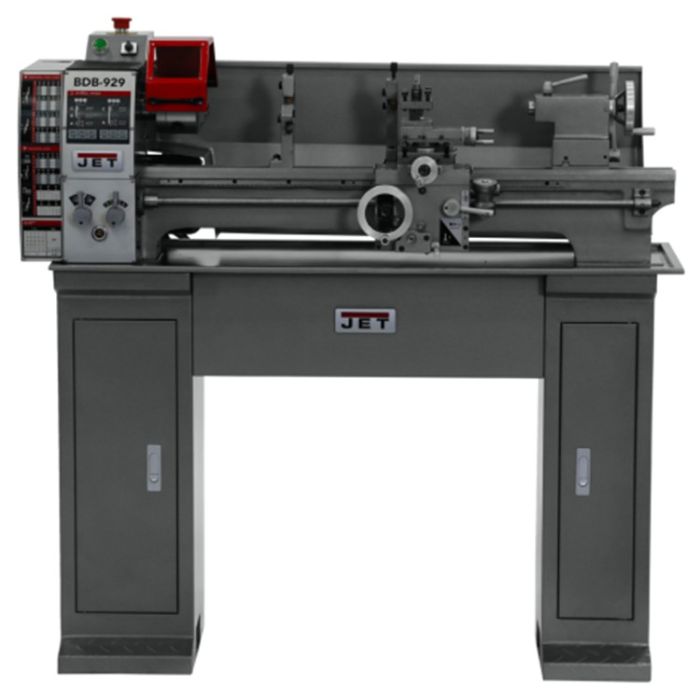

Jet 321372K BDB-929 115V Belt Drive Bench lathe with stand Ships direct from manufacturer
The BDB-929 benchtop lathe is the essential step to improving our shop’s capabilities. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings the BDB-929 delivers the smooth operation and rigidity needed to craft professional pieces.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New Features
Backlash adjustments provided throughout the carriage
Emergency stop within easy reach of the operator
Full length splash guard
Power longitudinal feed allows threading and reverse threading
Quick change gearbox provides wide range of inch and metric threads
Reversing switch for added versatility
Safety on/off switch
Spindle supported by precision tapered roller bearings
Standard accessories
Type Bench lathe Carriage Size 26.5" Compound Slide Size 1 7/8" Maximum Tool Size 1/2" Motor Horsepower 3/4 HP Motor Voltage 115 V Motor Phase 1 Ph Number of Thread 27" Longitudinal and Cross Feed Rate 60 Number of Spindle Speed 6 Overall Length 51" Overall Width 22" Overall Height 20" Teeth per Inch (Thread) 8 - 56 Range of Longitudinal Feed 0.0006 - 0.0368 IPR Spindle Speed (RPM) 130 - 2000 RPM Spindle Bore 3/4" Teeth per Inch (Spindle Mount) 1 1/2 x 8 Spindle Taper with Sleeve Type MT-3 Steady Rest Capacity 1 3/4" Swing Over Bed 8 3/4" Swing Over Cross Slide 5" Tailstock Spindle Size 1 9/16" Taper in Tailstock Spindle MT-2 Weight 287 lbs Bed Width 4 1/2"
