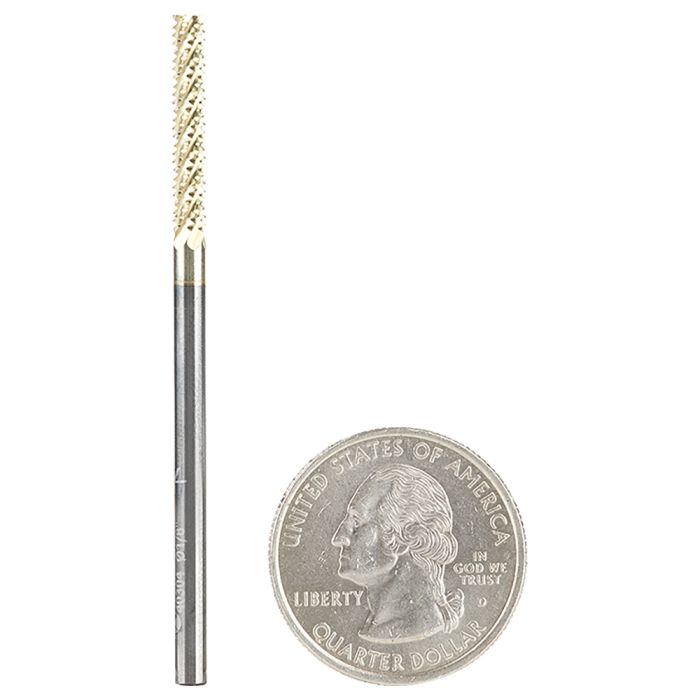

Amana Tool 40304 1/8" CNC Solid Carbide ZrN Coated Honeycomb Cutting Hogger Router Bit

SKU
40304
$64.66
Ships direct from manufacturer ?

Designed to cut a large variety of honeycomb materials, hogger geometry is excellent for shredding and chip evacuation while maintaining a smooth surface. Amana Tool's "hogger" style routers for honeycomb composites incorporate a precision-ground "knuckle" profile, allowing a freer-cutting action that reduces power requirements and less sidewall pressure in low output spindles while giving impressive gains in feed-rates. ZrN coating greatly enhances durability in highly abrasive composites.

Please note: For optimal results and to extend tool life please use mist lubricant system or air cooling. Please inspect cut and adjust accordingly.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
Features

Benefits of ZrN Coating:

  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • High resistance to wear
  • Extended tool life
  • Less friction and heat buildup
  • High resistance to wear
ApplicationFor Honeycomb, Composite Materials, Acrylonitrile-Butadiene-Styrene (ABS), Lexan
Flutes6
MaterialSolid Carbide
Type Router Bit
Diameter (D) 1/8"
Cutting Height (B) 13/16"
Shank Diameter (d) 1/8"
Overall Length (L) 2 1/2"
Maximum Speed (RPM) 25,000 RPM
Coating Zirconium Nitride (ZrN)
Cutting Edge Type Honeycomb Cutting
Style Hogger
Spindle Speed SFM* / Feed Rate IPM** / Chip Load Per Tooth (Aluminum Honeycomb) 800 - 1,200 / 320" - 540" / 0.003" - 0.005"
Spindle Speed SFM* / Feed Rate IPM** / Chip Load Per Tooth (Aramid Honeycomb) 1,200 - 1,600 / 210" - 430" / 0.002" - 0.004"
Spindle Speed SFM* / Feed Rate IPM** / Chip Load Per Tooth (Carbon Laminates (Nomex, Kevlar)) 1,100 - 1,400 / 210" - 430" / 0.002" - 0.004"
Spindle Speed SFM* / Feed Rate IPM** / Chip Load Per Tooth (Tedlar) 1,400 - 1,600 / 110" - 320" / 0.001" - 0.003"
