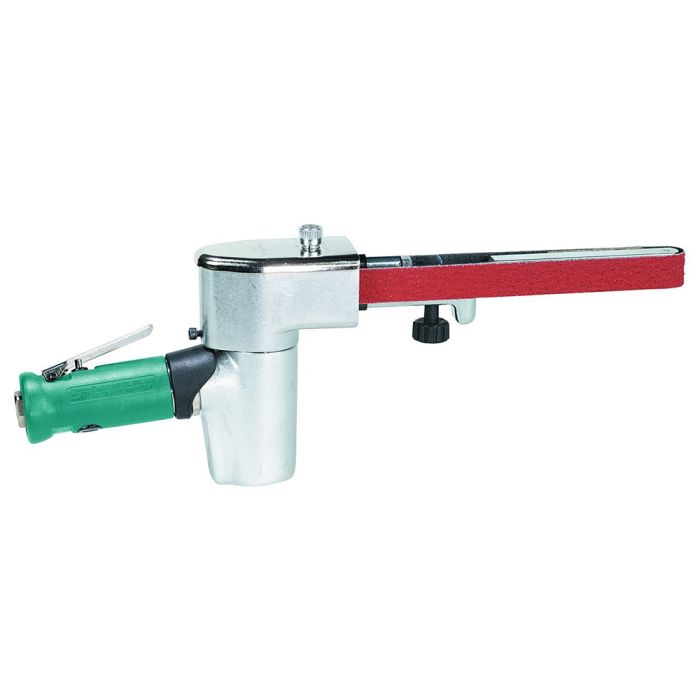

Dynabrade 40326 Dynafile II 1/4" X 3/8" Abrasive Belt Tool

SKU
40326
$749.00
Ships direct from manufacturer ?
It grinds, deburr, blend and polish on various materials like metal, plastic, fiberglass, composites, rubber, glass, etc. It discusses using a contact wheel or platen pad for grinding, and a slack belt for finishing and polishing. The design of the equipment is lightweight and ergonomic with a 7-degree offset. It also mentions the ability to pivot the grinding head 360 degrees for optimal positioning. The belt guard can easily be detached for quick abrasive change, and there is a belt tracking adjustment knob. The availability of a contact arm suitable for 5/8" or 3/4" wide abrasive belts.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerDynabrade
ConditionNew
UPC00616026403260
Includes
  • 11287 Contact Arm for 5/8" or 3/4" wide abrasive belts
PDFs

Catalog

ApplicationFor Metal, Plastic, Fiberglass, Composites, Rubber, Glass and more
Horsepower0.5 HP
Speed (RPM)20,000 RPM
Sound Level 80 dB(A)
Abrasive Belt Width 1/4" - 3/4"
Abrasive Belt Length 20 1/2"
Maximum Air Flow 28 SCFM
Maximum SFPM 4,550
Air Inlet Thread Type NPT
Air Inlet Thread Size 1/4"
Hose Inner Diameter 3/8"
Air Pressure 90 PSIG
Weight 2.5 lbs
Length 14 1/4"
Height 4 7/8"
