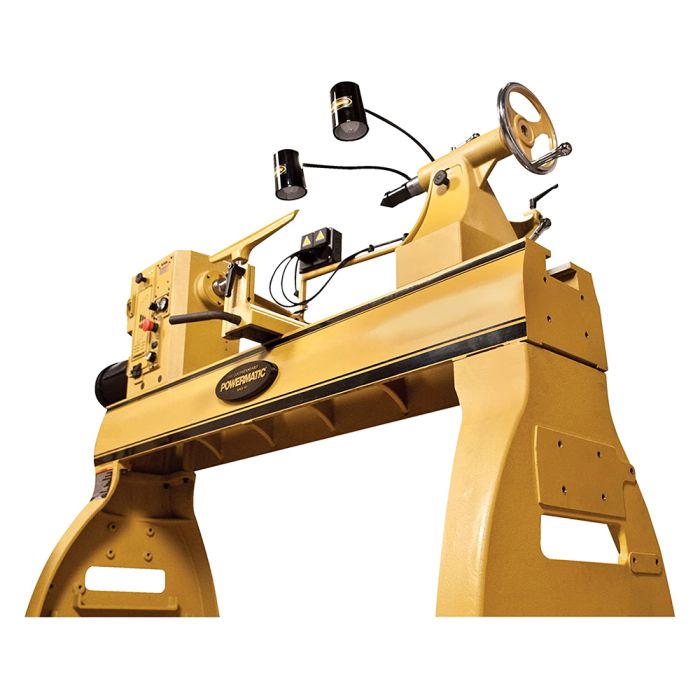

Powermatic 1794224K 4224B 230V Woodworking Lathe Kit, 3HP/3 Ph Ships direct from manufacturer
The Powermatic 4224B is the newest member of the industry-leading family of lathes. Over 900 pounds, the 4224B is the biggest, heaviest and most capable lathe we’ve ever built. It expands the limits of creative possibility and takes your passion to a whole new level. With newly designed, top of its class features, the 4224B pushes the limits of design, innovation and durability.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Powermatic Condition New UPC 73132522108 Features Sliding headstock with electronic variable speed and digital RPM readout displays accurate speed Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features 15-amp quad receptacle for easy reach of powered accessories Vacuum system provides quick method of chucking bowl blanks A variable frequency drive allows this machine to run on single or three-phase power Magnetic-backed moveable control box for customizable versatility and safety Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers Air nozzle with quick connect for clearing dust/chips Set of dead centers which hold a spindle for visual comparison Includes two 100W task lamps to provide ideal lighting and safety guard PDFs Horsepower 3 HP Motor Phase 3 Ph Stationary type Leg Stand
Motor Current 10 Amps Motor Voltage 230 V Prewired Voltage 230 V Recommended Circuit Size 30 Amps Wiring Remarks VFD will Accept 1 or 3 Phase Power Bed Construction Cast Iron Outboard Turning 88 Centerline of Spindle to Floor 44" Number of Indexing Positions 98 Speed Range 40-3500 Spindle Speeds High 135-3500/Med 80-2000/Low 40-970 Outboard External Threads (In. x TPI) M35 x 1.5 UNF Spindle Threads (In. x TPI) 1 1/4" x 8 TPI Ram Travel Quill Travel 4 1/2" Quill Taper MT-2 Spindle Taper MT-2 Tailstock Bore 3/8" Spindle Bore 5/8" Headstock Movement Full Length of Bed Distance Between Centers 42" Swing Over Tool Rest Base 19 1/4" Swing Over Bed 24"
