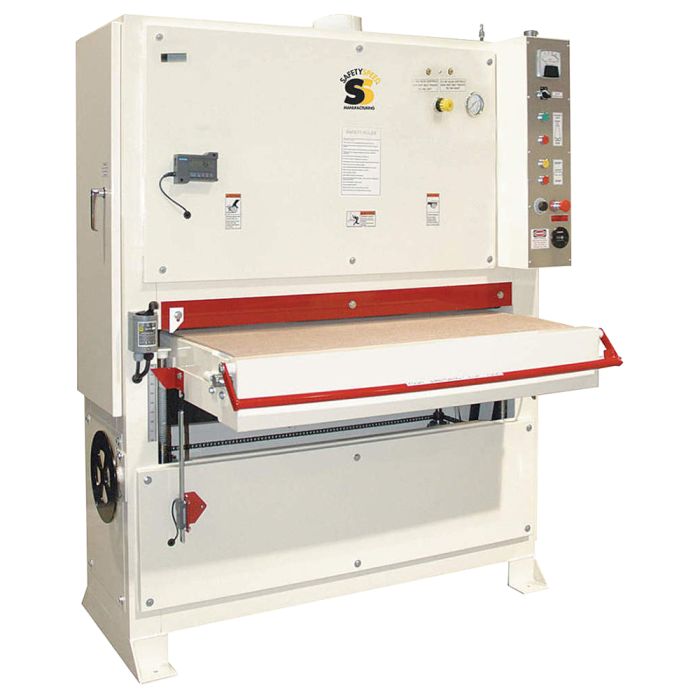

Safety Speed Cut WBS4375101 220V Wide Belt Sander

SKU
WBS4375101
$20,449.00
Ships direct from manufacturer?
The 43" wide belt sander features a 75" belt, providing 25% more abrasive surface than the smaller 60" belt machines. The larger belt translates to increased capacity, less heat accumulation, less maintenance and fewer belt replacements. With a fully adjustable platen these sanders will deliver a perfect smooth finish every time.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Safety Speed Cut
Condition New
Features
  • Photo electric belt tracking
  • Pneumatic belt tension
  • 2 1/2" Graphite covered felt pad and adjustable platen
  • 2 Rubber-covered pinch rollers 2 1/2" OD
  • 2 Machined idler rollers 4 1/4" OD with 1" bearings
  • Rubber-covered contact roller 5 1/4" OD with 1 5/8" drive bearing
  • Conveyor table set on four 1" acme thread jackscrews
  • 2 Height adjustment indicators
  • 6" Internal dust chute
  • 5 Emergency stops
Video

Horsepower 10 HP
Motor Phase 1 Ph
Warranty 3 Years
TypeWide Belt Sander
Height70"
Width56"
Maximum Working LengthUnlimited
Minimum Working Length12"
Voltage220 V
Maximum Working Width42"
Maximum Working Thickness7.25"
Minimum Working Thickness1/8"
Depth53"
Vacuum Requirement1000 CFM
Conveyor Speed0-18 FPM
Durometer (Contact Roller)60
Sanding Belt Size43" x 75"
