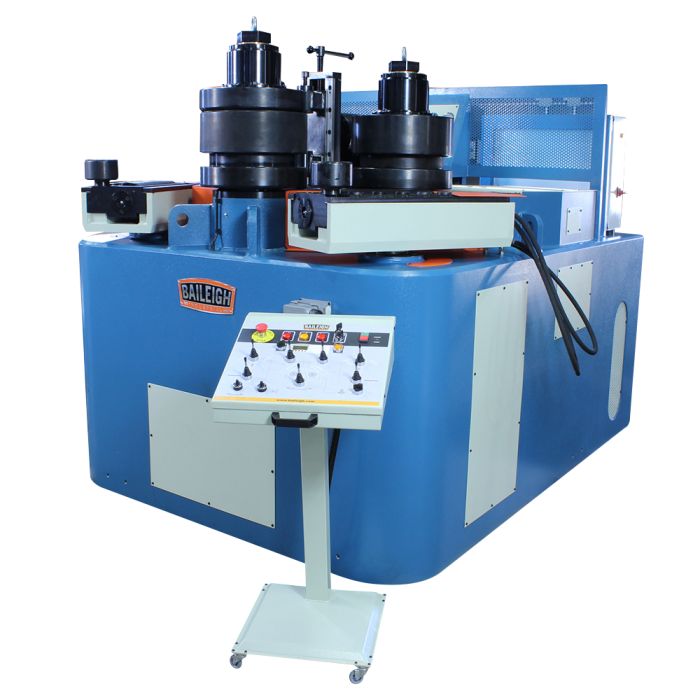

This fully-horizontal hydraulic roll bender draws on the strength of a heavy steel frame to tackle extended production runs of difficult segments in large ODs.
WARNING: Proposition 65 Warning for California Residents View Details
3 variable-speed, driven rolls let you choose the right settings for a given part and material
Digital readout takes the hassle out of making repeatable parts
Movable operator podium allows you to control every function of the machine at once
Baileigh covers this angle roller with a 1-year parts warranty as well as lifetime technical support by phone
We use the highest-grade steel to build this unit’s frame—unlike many other competing roll benders. Why settle for anything less than an upper-shaft diameter of just under 7.5"
Independently-controlled lateral roll guides and lower bending rolls come standard on a Baileigh machine, whereas other manufacturers might consider these features as upgrades
Intuitive controls and readouts make programming single-radius bends virtually effortless
We’ll collaborate with you to build a custom solution for your roll bending needs and applications
Baileigh’s team of knowledgeable team of reps will provide limitless project advice and machine troubleshooting by phone
Motor Phase
3 Ph
Stationary type
Roll Bender
Suitable for Use With
Structural Applications, Playgrounds, Shipyard Building, or any High-Production, Low-Waste Project
Roll Adjustment
Hydraulic
Pipe Capacity
6" (sch. 40) / Min. Dia.: 98"
Square Tube Capacity
4.7" (0.315")
Solid Round Capacity
4" / Min. Dia. 40"
Flat Bar Easy Way
9.75" (1.5") / Min. Dia. 40"
Flat Bar Hard Way
5.875" (1.375")/ Min. Dia.: 40"
Lower Shaft Diameter
6.69"
Upper Shaft Diameter
7.48"
Control
DRO
Motor
5.3 Hp
Pinch
Double
Voltage
220 V
Material Type
All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel
