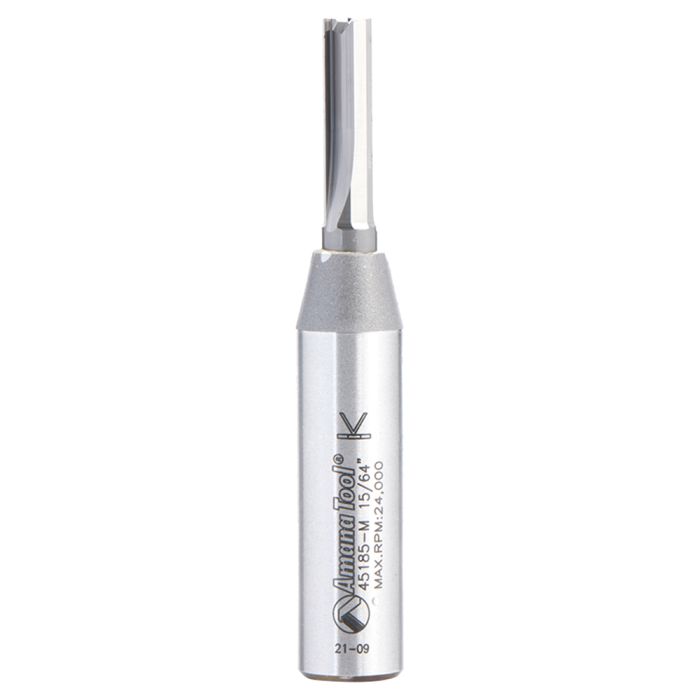

Amana Tool 45185-M 6mm CNC In-Presta Cutting Edge High Production Router Bit Ships direct from manufacturer
Up to 800 inches per minute!*
For cutting 3/4" material thickness in one pass
3 Flute for improved surface finish
Only 6mm diameter equals minimal material waste
Use a three-flute bit where fine finish is paramount. Three flutes balance the bit, eliminating vibration that degrades the cut finish. Three cuts per revolution yield a smooth surface and increased feed rates. 45185-M features a solid carbide cutting edge.
*Up to 800 IPM feed rate at 18,000 RPM cutting laminated particle board. Rate may change depending on material and CNC machine type.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Amana Tool Corp. Condition New UPC 00738685451854 Features
Excellent for nesting and grooving at an extremely fast feed rate which increases cost savings
6mm cutting diameter CNC nesting router bit with solid carbide cutting edges brazed into steel 12mm shank
The unique design contributes to superb performance and excellent cutting results
Designed primarily for high speed CNC production
Long lasting, fine micrograin extra hard carbide resulting in long tool life before re-sharpening
Flutes 3 Material Solid Carbide
Type
Router Bit
Diameter (D)
6 mm
Cutting Height (B)
21 mm
Shank Diameter (d)
12 mm
Overall Length (L)
77 mm
Style
Straight Plunge
Maximum Speed (RPM)
24,000 RPM
Particle Board, MDF & Melamine IPM* / Chip Load Per Tooth
800" / 0.014"
Plywood IPM* / Chip Load Per Tooth
500" / 0.009"
Application
Laminated Particle Board, MDF & Melamine: Feed Rate Up to 800 IPM** at 18,000 RPM***, Plywood: Feed Rate Up to 500 IPM** at 18,000 RPM***
