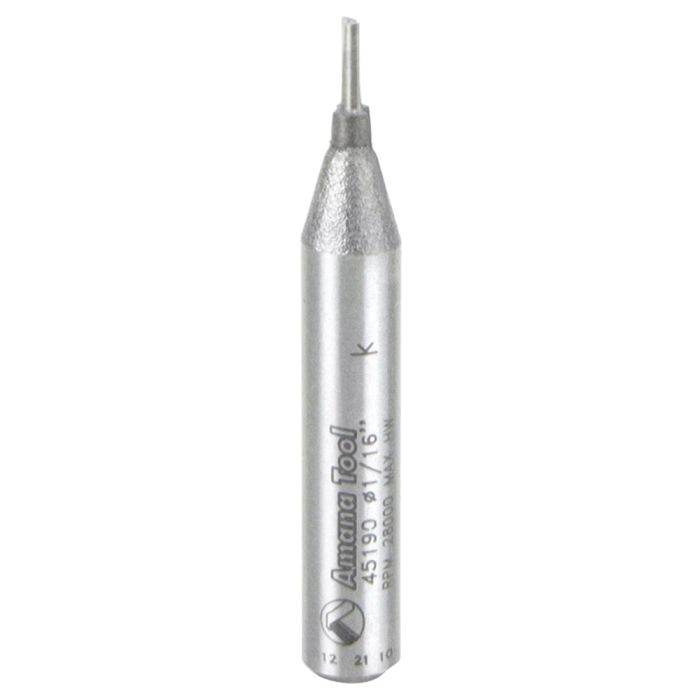

Amana Tool 45190 1/16" Solid Carbide Cutting Edge Straight Plunge High Production Router Bit
SKU
45190
$31.32
In Stock
Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced. 45190 features a solid carbide cutting edge. Perfect for CNC work. Solid carbide (brazed to steel shank).
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868585190 |
| Features |
|
| PDFs | |
| Application | Wood, MDF, Plywood |
| Type | Router Bit |
| Ball Bearing | No |
| Cutter Height(B) | 3/16" |
| Cutting Diameter(D) | 1/16" |
| Diameter(D) | 1/16" |
| Flutes | 2 |
| Length(L) | 1 5/8" |
| Material | Solid Carbide |
| Overall Length(L) | 1 5/8" |
| RPM | 28,000 RPM |
| Shank | 1/4" |
| Shank(d) | 1/4" |
| Tool No. | 45190 |
| Diameter(D) | 1/16" |
|---|---|
| Cutter Height(B) | 3/16" |
| Shank(d) | 1/4" |
| Overall Length(L) | 1-5/8" |
| Flutes | 2 |
| Max. RPM | 28,000 RPM |
