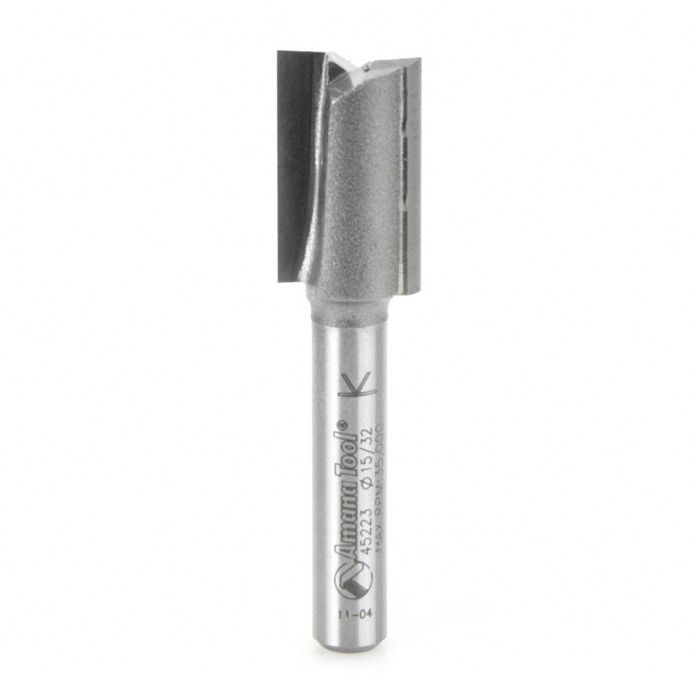

Amana Tool 45223 15/32" Carbide Tipped Undersized Plywood Dado Plunge Router Bit

SKU
45223
$28.81
Ships direct from manufacturer ?

Use a two-flute bit where fine finish is paramount. Two flutes balance the bit, eliminating vibration that degrades the cut finish. Two cuts per revolution yield a smooth surface, but feed rate is slightly reduced.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868585223
PDFs
ApplicationFor Plywood
Flutes2
MaterialCarbide Tip
Plywood Thickness1/2" minus 1/32"
Type Router Bit
Diameter (D) 15/32"
Cutting Height (B) 3/4"
Shank Diameter (d) 1/4"
Overall Length (L) 2"
Style Dado Plunge
IPM* / Chip Load Per Tooth (Softwood) 280" / 0.0079"
IPM* / Chip Load Per Tooth (Hardwood) 120" / 0.0033"
IPM* / Chip Load Per Tooth (MDF) 240" / 0.0066"
IPM* / Chip Load Per Tooth (Plywood) 140" / 0.0040"
Maximum Speed (RPM) 35,000 RPM
