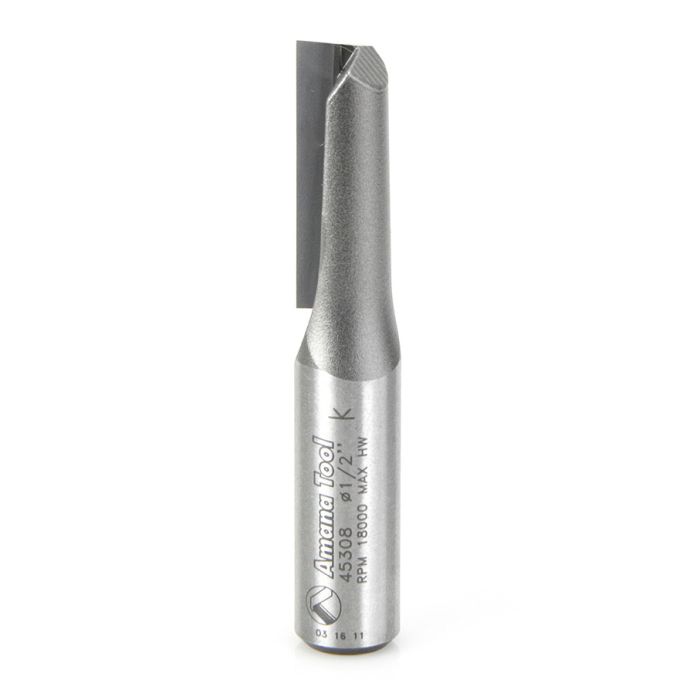

Amana Tool 45308 1/2" Carbide Tipped Straight Plunge High Production Router Bit

SKU
45308
$25.54
In Stock

Choosing a straight bit for any application, always select one with the shortest cutting edges and the shortest overall length that will reach the required cut depth. Excessive length intensifies deflection and vibration, which degrade cut quality and lead to tool breakage. A single-flute bit should be used where cut speed is more important than cut finish. Making one cut per revolution is faster than making two or three. Improved chip clearance is possible with a single flute configuration. The Result: Fast cuts.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868585308
Features
  • 200% Longer life time even when working with abrasive materials
  • Superior geometric design
  • Advanced grinding technology that improves the carbide's resistance to wear
  • Super clean cuts
PDFs
Type High Production Router Bit
Diameter (D) 1/2"
Cutting Height (B) 1 1/4"
Shank (d) 1/2"
Overall Length (L) 2 7/8"
Flutes 1
Flute Type Straight Plunge
Material Carbide Tipped
Maximum Speed (RPM) 18,000 RPM
IPM / Chip Load Per Tooth (Softwood) 180" / 0.0099"
IPM / Chip Load Per Tooth (Hardwood) 75" / 0.0041"
IPM / Chip Load Per Tooth (MDF) 150" / 0.0083"
IPM / Chip Load Per Tooth (Plywood) 90" / 0.0048"
