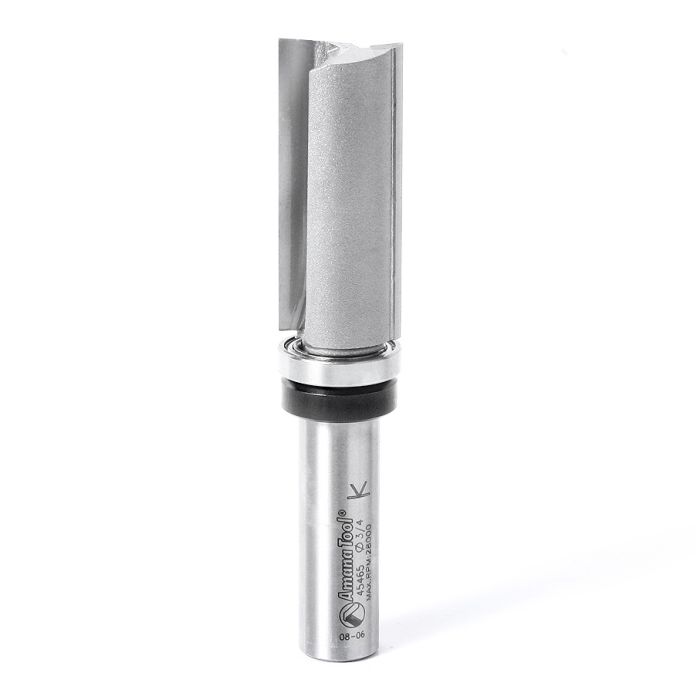

Amana Tool 45465 3/4" x 3-3/4" Carbide Tipped Flush Trim Plunge Template Router Bit
SKU
45465
$85.80
In Stock
This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868585465 |
| Features |
|
| Includes | 47721 Upper Ball Bearing, 47739 Collar |
| PDFs | |
| Application | For Template/Pattern Routing of Parts, Joints, Internal Cuts and Can be Used in Handheld and Table mounted Routers |
| Replacement Bearing | 47721 |
| Replacement Collar | 47739 |
| Type | Router Bit |
| Ball Bearing | Upper |
| Cutter Height(B) | 1 3/4" |
| Cutting Diameter(D) | 3/4" |
| Diameter(D) | 3/4" |
| Flutes | 2 |
| Length(L) | 3 3/4" |
| Material | Carbide Tip |
| RPM | 28,000 RPM |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 45465 |
| Diameter(D) | 3/4" |
|---|---|
| Cutter Height(B) | 1-3/4" |
| Shank(d) | 1/2" |
| Overall Length(L) | 3-3/4" |
| Flutes | 2 |
| Replacement Collar | 47739 |
| Replacement Bearing | 47721 |
| Max. RPM | 28,000 RPM |
