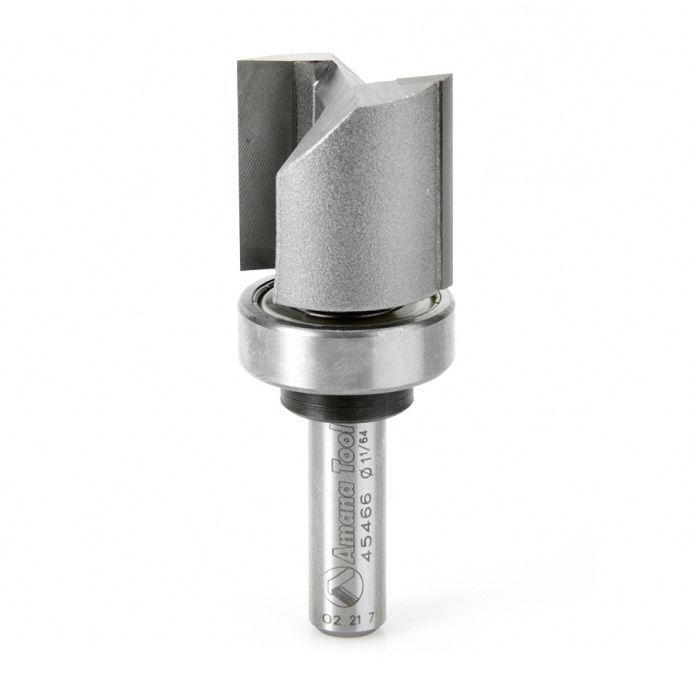

Amana Tool 45466 3/8" Carbide Tipped Flush Trim Plunge Template Router Bit with Upper Ball Bearing

SKU
45466
$57.63
Ships direct from manufacturer?
This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868585466
PDFs
ApplicationFor Template/Pattern Routing of Parts, Joints, Internal Cuts
Replacement Bearing47722
Replacement Collar47730
Flutes2
MaterialCarbide Tip
Type Router Bit
Diameter (D) 1"
Cutter Height (B) 1"
Shank Diameter (d) 3/8"
Overall Length (L) 2 7/8"
Style Flush Trim Plunge Template
Suitable for Use with Handheld and Table-Mounted Routers
