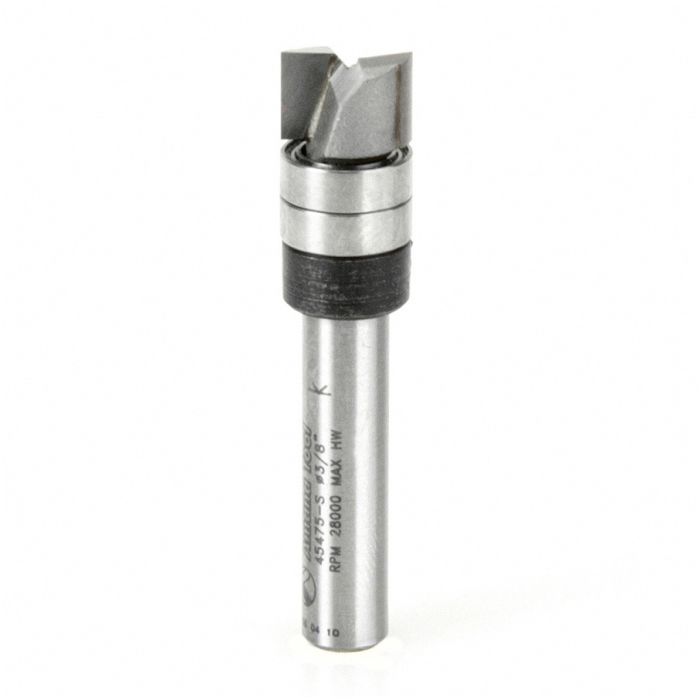

Amana Tool 45475-S 3/8" x 1-3/4" Carbide Tipped Flush Trim Plunge Template Router Bit with 2 Upper Ball Bearing

SKU
45475-S
$33.44
In Stock
This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868509477
PDFs
ApplicationFor Template/Pattern Routing of Parts, Joints, Internal Cuts
Replacement Bearing47751(2)
Replacement Collar47764
Flutes2
MaterialCarbide Tip
Type Router Bit with 2 Upper Ball Bearing
Diameter (D) 3/8"
Cutting Height (B) 1/4"
Shank Diameter (d) 1/4"
Overall Length (L) 1 3/4"
Style Flush Trim Plunge Template
Maximum Speed (RPM) 28,000 RPM
Suitable for Use with Handheld and Table-Mounted Routers
