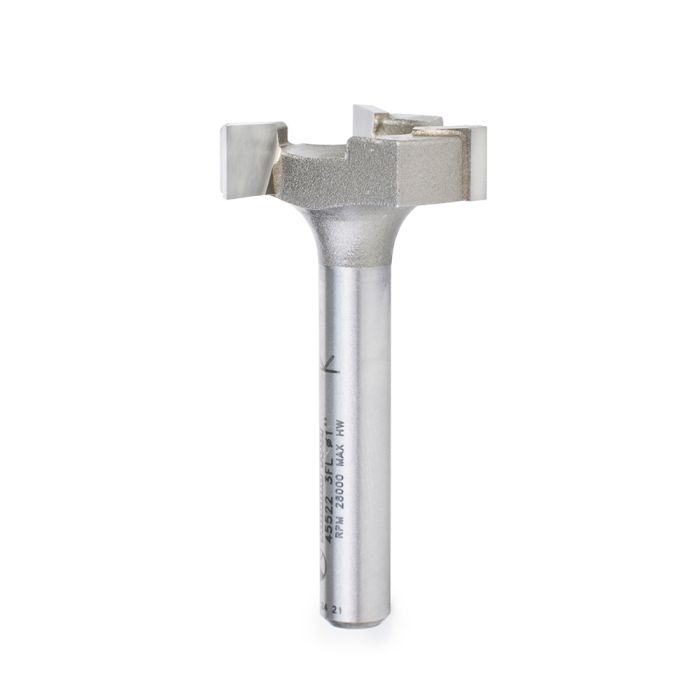

Carbide tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing. Perfect for removing fine layers of materials.
Make sure that our router sled is fully stable and squared.
**Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.
WARNING: Proposition 65 Warning for California Residents View Details
Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process
Flutes
3
Material
Carbide Tip
Wings
3
Type
Router Bit
Diameter (D)
1"
Cutting Height (B)
1/4"
Shank Diameter (d)
1/4"
Overall Length (L)
1 3/4"
Maximum Speed (RPM)
28,000 RPM
Suitable for Use with
Router Sled Machines
Plywood/Chipboard (IPM* / Chip Load Per Tooth)
130" / 0.002"
Hardwood (IPM* / Chip Load Per Tooth)
120" / 0.002"
MDF (IPM* / Chip Load Per Tooth)
200" / 0.004"
Softwood (IPM* / Chip Load Per Tooth)
130" / 0.002"
Plastic (IPM* / Chip Load Per Tooth)
120" / 0.002"
Application
For Resurfacing Spoilboards Using CNC, Planing Large Glued Up Panels Using CNC, Surfacing and Finishing Wood Using Timber Slab Machines, Rabbeting or Slotting, Flycutter, Slab Leveler, Surface Planer & Flattening and for Planing & Rabbeting MDF, Fiberboard, HDF/LDF, Balsa Core, Plastic/Acrylic**, Chipboard, Hardwood/Softwood
