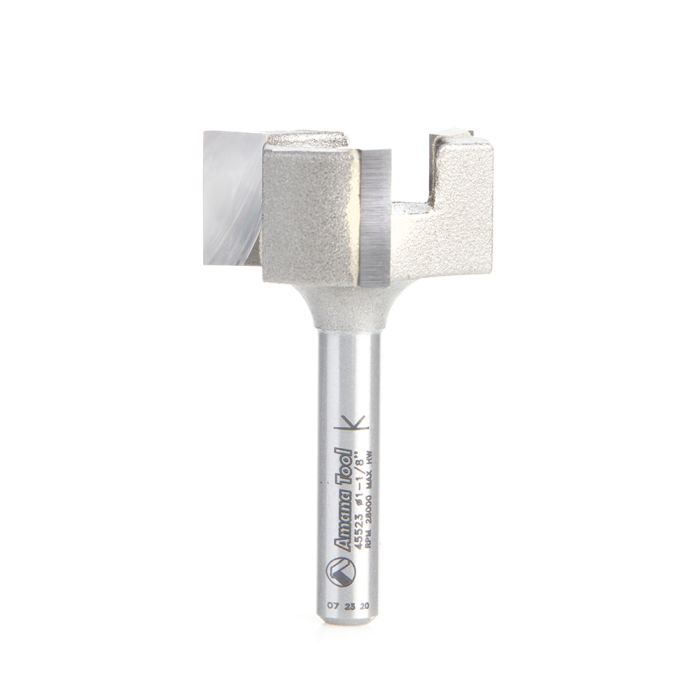

Carbide tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing. Perfect for removing fine layers of materials.
Make sure that our router sled is fully stable and squared.
**Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.
WARNING: Proposition 65 Warning for California Residents View Details
Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process
Flutes
3
Material
Carbide Tip
Wings
3
Type
Router Bit
Diameter (D)
28.5 mm
Cutting Height (B)
12.5 mm
Shank Diameter (d)
6 mm
Overall Length (L)
46 mm
Maximum Speed (RPM)
28,000 RPM
Suitable for Use with
Router Sled Machines
Plywood/Chipboard (IPM* / Chip Load Per Tooth)
130" / 0.002"
Hardwood (IPM* / Chip Load Per Tooth)
120" / 0.002"
MDF (IPM* / Chip Load Per Tooth)
200" / 0.004"
Softwood (IPM* / Chip Load Per Tooth)
130" / 0.002"
Plastic (IPM* / Chip Load Per Tooth)
120" / 0.002"
Application
For Resurfacing Spoilboards Using CNC, Planing Large Glued Up Panels Using CNC, Surfacing and Finishing Wood Using Timber Slab Machines, Rabbeting or Slotting, Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler and for Planing & Rabbeting MDF, Fiberboard, HDF/LDF, Balsa Core, Plastic/Acrylic**, Chipboard, Hardwood/Softwood
