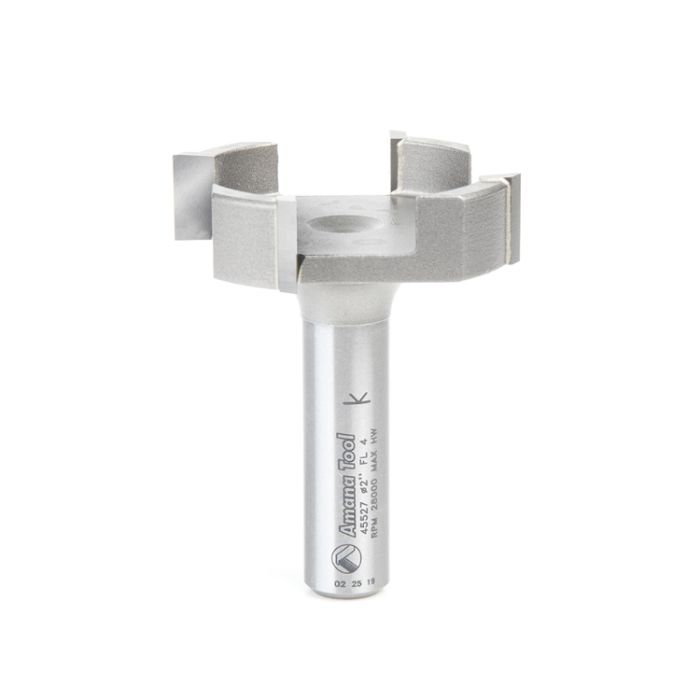

Carbide tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing
Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process
Perfect for
Resurfacing spoilboards using CNC
Planing large glued up panels using CNC
Surfacing and finishing wood using timber slab machines
Rabbeting or slotting
Flutes
4
Material
Carbide Tip
Type
Router Bit
Diameter (D)
2"
Cutting Height (B)
1/2"
Shank Diameter (d)
1/2"
Overall Length (L)
2 1/2"
Maximum Speed (RPM)
28,000 RPM
Wings
4-Wing
IPM* / Chip Load Per Tooth (Plywood/Chipboard)
160" / 0.002"
IPM* / Chip Load Per Tooth (Hardwood)
150" / 0.002"
IPM* / Chip Load Per Tooth (MDF)
250" / 0.004"
IPM* / Chip Load Per Tooth (Softwood)
160" / 0.002"
IPM* / Chip Load Per Tooth (Plastic)
150" / 0.002"
Suitable for Use with
Router Sled Machines
Application
For Planing, Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer and Flattening, and for planing and rabbeting in MDF, Fiberboard, HDF/LDF, Balsa Core
