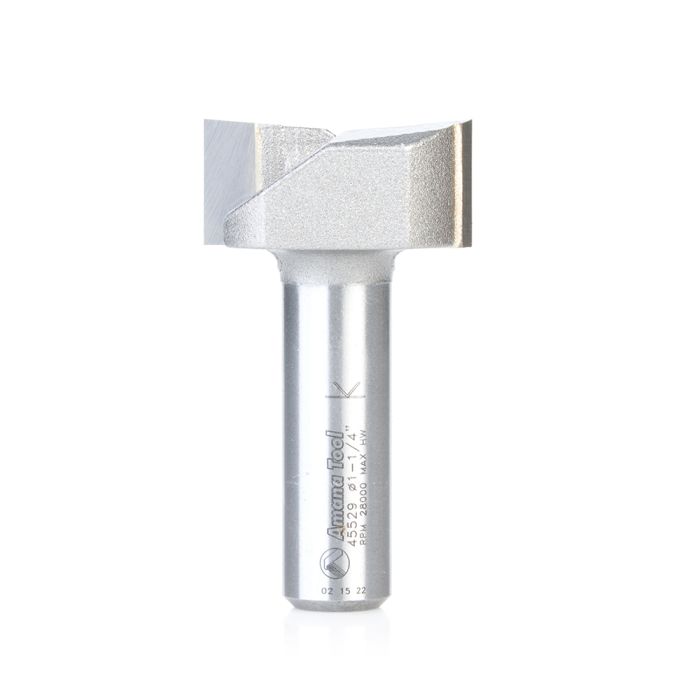

Amana Tool 45529 1-1/4" Carbide Tipped Router Bit

SKU

45529

$39.48

Ships direct from manufacturer

Carbide tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing.

Make sure that our router sled is fully stable and squared.

**Use lower CNC spindle RPM and adjusted feed-rate to prevent Melting and adhesion of the acrylic material to the tool.

WARNING: Proposition 65 Warning for California Residents View Details

More Information
Manufacturer	Amana Tool Corp.
Condition	New
UPC	00738685455296
Features	Exclusive carbide grade for highest quality of cut Maximum cutting efficiency Faster material removal process
Flutes	2
Material	Carbide Tip
Wings	2

Type	Router Bit
Diameter (D)	1 1/4"
Cutting Height (B)	9/16"
Shank Diameter (d)	1/2"
Overall Length (L)	2 1/4"
Maximum Speed (RPM)	28,000 RPM
Suitable for Use with	Router Sled Machines
Plywood/Chipboard (IPM* / Chip Load Per Tooth)	130" / 0.002"
Hardwood (IPM* / Chip Load Per Tooth)	120" / 0.002"
MDF (IPM* / Chip Load Per Tooth)	200" / 0.004"
Softwood (IPM* / Chip Load Per Tooth)	130" / 0.002"
Plastic (IPM* / Chip Load Per Tooth)	120" / 0.002"
Application	For Resurfacing Spoilboards Using CNC, Planing Large Glued Up Panels Using CNC, Surfacing and Finishing Wood Using Timber Slab Machines, Rabbeting or Slotting, Flycutter, Slab Leveler, Surface Planer and Flattening, MDF, Fiberboard, HDF/LDF, Balsa Core, Plastic/Acrylic**, Chipboard, Hardwood/Softwood
