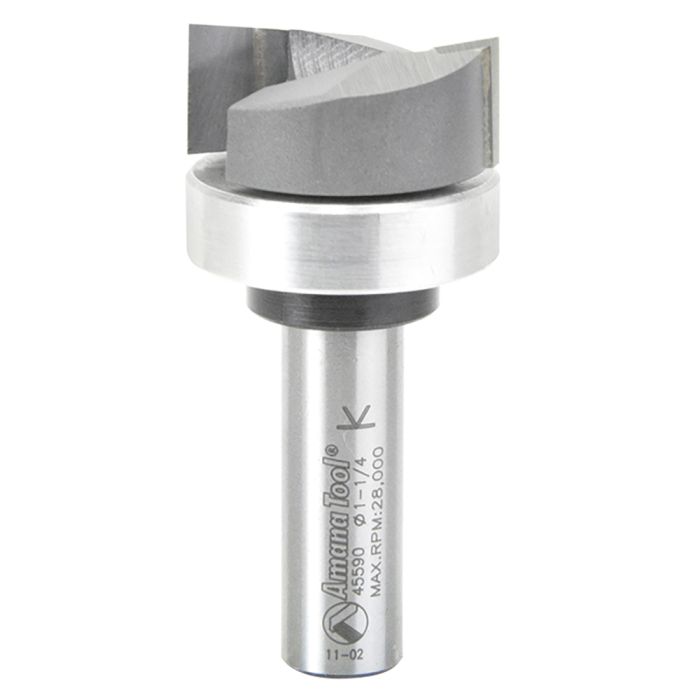

Amana Tool 45590 1-1/4" Carbide Tipped Mortising Router Bit

SKU
45590
$60.26
Ships direct from manufacturer ?
There is no faster method for producing multiple mortises than with a template. And the accuracy achieved with a template is unparallel. These mortise bits are specially designed for use with templates, both linear and curved. If you've ever used a bushing with template work then you'll appreciate these bearing-guided bits; there's no need to calculate offset – ever. Instead, the mortise is sized exactly to the template. And, unlike a bushing on the router sub-base, the guide bearing is always concentric to the cutting circle of the bit. This ensures precise cuts each and every time.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868545590
Includes
  • Upper Ball Bearing
Replacement Bearing47756
Replacement Collar47740
TypeRouter Bit
Ball BearingUpper
Cutter Height(B)1/2"
Diameter(D)1 1/4"
Flutes2
MaterialCarbide Tip
Overall Length(L)2 5/8"
Shank(d)1/2"
Tool No.45590
Diameter(D)1-1/4"
Cutter Height(B)1/2"
Shank(d)1/2"
Overall Length(L)2-5/8"
Flutes2
Replacement Bearing47756
Replacement Collar47740
Max. RPM28,000 RPM
StyleMortising
