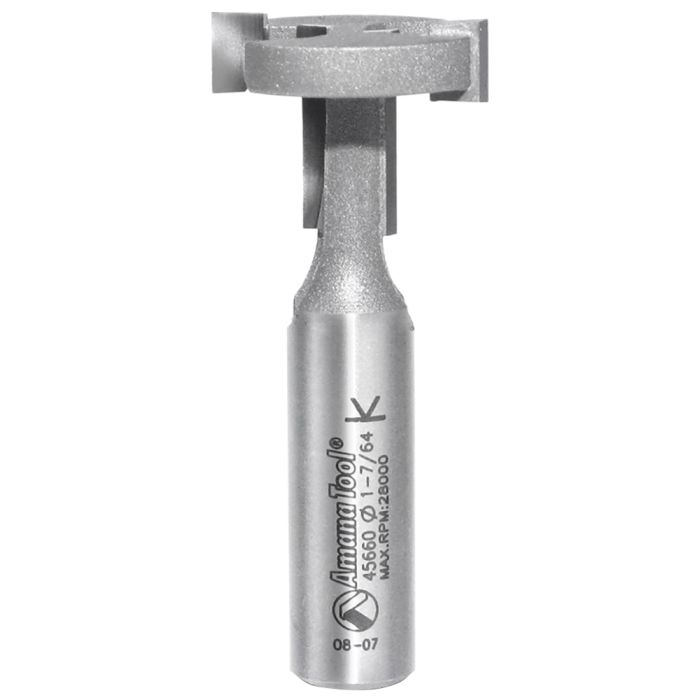

Amana Tool 45660 1-1/8" T-Slot Straight Square Edge Router Bit
SKU
45660
$76.87
Ships direct from manufacturer ?
Designed for creating T-slot wall panels (used to cut their characteristic slots for many purposes) and radiused edges on the T-slots (allow easier adjustment of fixtures on the completed wall panels). For best results use in CNC and table-mounted routers. These tools are designed for ‘groove-forming’ T-slot wall panels, they are not designed for plunging operations.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868585660 |
| Type | Router Bit |
| B1 | 5/16" |
| Ball Bearing | No |
| Cutter Height(B) | 13/16" |
| Diameter(D) | 1 1/8" |
| Diameter(D1) | 3/8" |
| Flutes | 2 |
| Material | Carbide Tip |
| Overall Length(L) | 2 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 45660 |
| Max. RPM | 28,000 RPM |
|---|---|
| Diameter(D) | 1-1/8" |
| Cutting Height (B) | 13/16" |
| Overall Length(L) | 2-1/2" |
| Shank(d) | 1/2" |
| Flutes | 2 |
| Diameter(D1) | 3/8" |
| Cutting Height (B1) | 5/16" |
| Style | T-Slot Square Edge |
