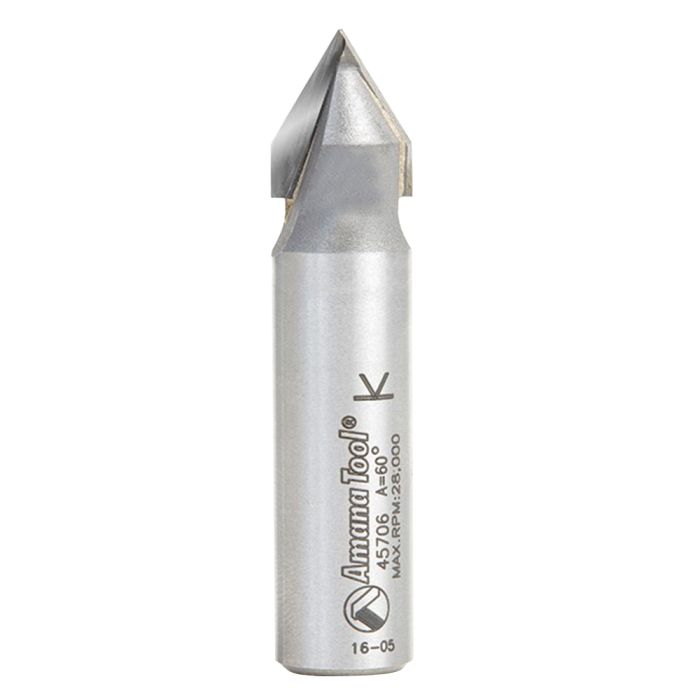

Amana Tool 45706 1/2" Carbide Tipped V-Groove Router Bit
Ships direct from manufacturer
Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| Flutes | 2 |
|---|
| Material | Carbide Tip |
|---|
| Type | Router Bit |
|---|
| Angle (a°) | 60 Deg |
|---|
| Diameter (D) | 1/2" |
|---|
| Cutting Height (B) | 27/64" |
|---|
| B1 | 5/8" |
|---|
| Shank Diameter (d) | 1/2" |
|---|
| Overall Length (L) | 2 1/4" |
|---|
| Maximum Speed (RPM) | 28000 RPM |
|---|
| Style | V-Groove |
|---|
| IPM* / Chip Load Per Tooth (Hardwood) |
90" / 0.0024" |
| IPM* / Chip Load Per Tooth (Softwood) |
90" / 0.0024" |
| IPM* / Chip Load Per Tooth (Plastic) |
90" / 0.0024" |
| IPM* / Chip Load Per Tooth (Plywood) |
90" / 0.0024" |
| IPM* / Chip Load Per Tooth (MDF) |
180" / 0.0048" |
| Suitable for Use with | Handheld, Table-Mounted and CNC Routers |
|---|
| Application | 20 lbs High Density Urethane, Acrylic, Composites, Composite Decking, Foam, Laminate, MDF/HDF, Melamine, Plywood, PVC Plastic, Sign Board, Solid Surface, Veneered Plywood, Wood, Xanita Board |
|---|
