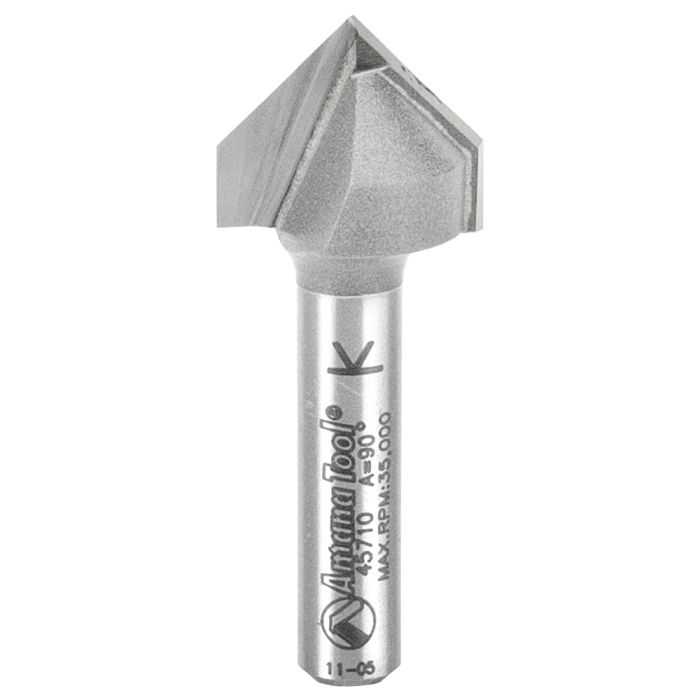

Amana Tool 45710 5/8" Carbide Tipped V-Groove Router Bit

SKU

45710

$59.40

Ships direct from manufacturer

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges.

WARNING: Proposition 65 Warning for California Residents View Details

Type	Router Bit
Angle (a°)	90 Deg
Diameter (D)	5/8"
Cutting Height (B)	5/16"
B1	1/2"
Shank Diameter (d)	1/4"
Overall Length (L)	1 5/8"
Maximum Speed (RPM)	35000 RPM
Style	V-Groove
IPM* / Chip Load Per Tooth (Hardwood)	90" / 0.0024"
IPM* / Chip Load Per Tooth (Softwood)	90" / 0.0024"
IPM* / Chip Load Per Tooth (Plastic)	90" / 0.0024"
IPM* / Chip Load Per Tooth (Plywood)	90" / 0.0024"
IPM* / Chip Load Per Tooth (MDF)	180" / 0.0048"
Suitable for Use with	Handheld, Table-Mounted and CNC Routers
Application	20 lbs High Density Urethane, Acrylic, Composites, Composite Decking, Foam, Laminate, MDF/HDF, Melamine, Plywood, PVC Plastic, Sign Board, Solid Surface, Veneered Plywood, Wood, Xanita Board
