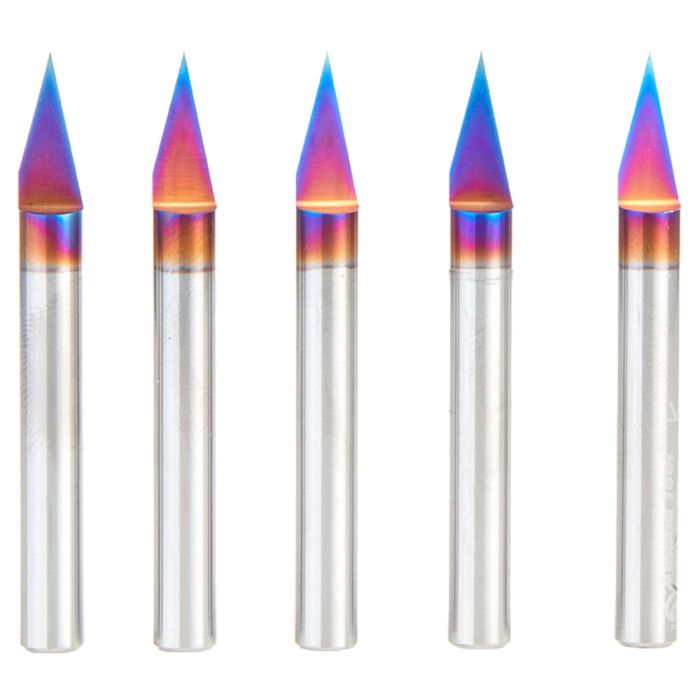

Amana Tool 45771-K-5 1/4" x 2-1/4" Spektra Solid Carbide Router Bit, 5 Piece

SKU
45771-K-5
$248.57
Ships direct from manufacturer?

Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
Features
  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
ApplicationFor Engraving, Signmaking, Carving and Lettering Details, and Used for Wood, Plastic and Solid Surface Materials
MaterialSolid Carbide
Package Size5
TypeRouter Bit Set
Angle (a°)30 Deg
Cutting Height (B)0.440"
Shank Diameter (d)1/4"
Overall Length (L)2 1/4"
Tip Width (t)0.005"
CoatingnACo Ceramic
Maximum Speed (RPM)28,000 RPM
Feed Rate IPM* / Chip Load Per Tooth IPR** (Soft Wood)50" - 125" / 0.003" - 0.007
Feed Rate IPM* / Chip Load Per Tooth IPR** (Hard Wood)50" - 125" / 0.003" - 0.007
Feed Rate IPM* / Chip Load Per Tooth IPR** (Soft Plastic)50" - 125" / 0.003" - 0.007
Feed Rate IPM* / Chip Load Per Tooth IPR** (Hard Plastic)50" - 125" / 0.003" - 0.007
Feed Rate IPM* / Chip Load Per Tooth IPR** (Solid Surface)50" - 125" / 0.003" - 0.007
