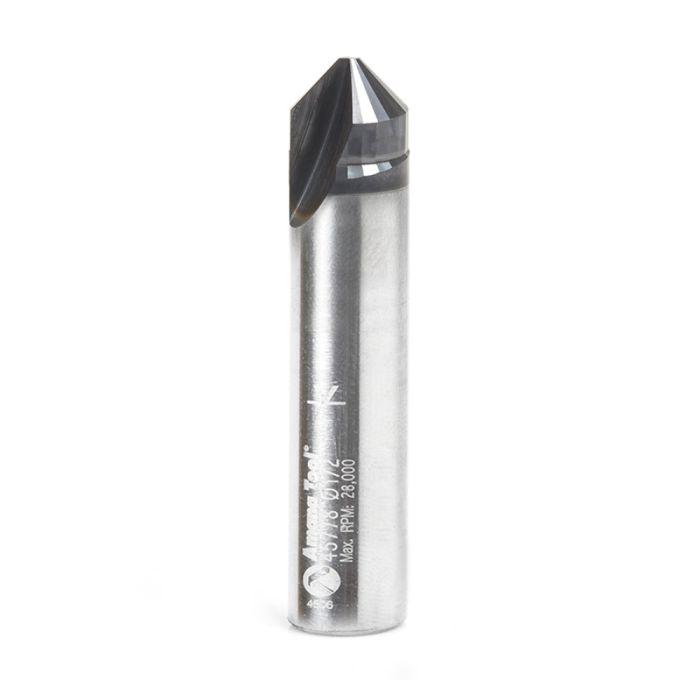

Amana Tool 45778 1/2" Carbide Tipped V-Groove Router Bit

SKU
45778
$107.68
Ships direct from manufacturer?

The carbide cutting tip is brazed to a steel shank specially designed to cut grooves in composite building materials. These bits are widely used as cladding for many diverse applications such as office buildings, hospitals, convention centers, airports, hotels. Routing V-shaped grooves, whereby the steel cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00738685457788
Features
AlTiN coating has many benefits:

  • Extra wear resistance
  • Allows for faster feed and speed rates
  • Cutting edge protected from wear
  • Better chip evacuation
  • Less heat build up
  • Superior cutting quality and extended tool life
Flutes2
MaterialCarbide Tip
TypeRouter Bit
Angle (a°)90 Deg
Angle (a1°)45 Deg
Diameter (D)1/2"
Diameter (D1)0.090"
Cutting Height (B)13/64"
Cutting Height (B1)3/8"
Shank Diameter (d)1/2"
Overall Length (L)2 3/8"
Maximum Speed (RPM)28,000 RPM
CoatingAlTiN
Speed (RPM)18,000 - 24,000 RPM
ApplicationFor Cutting And Scoring Steel Sandwich Materials Metal Composite Material (MCM), Steel Composite Material (SCM), Titanium Composite Material (TCM)
