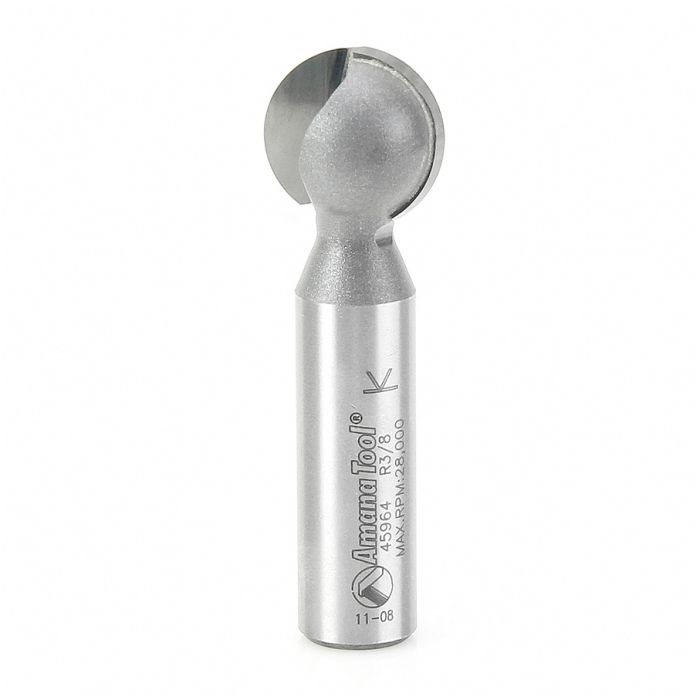

Amana Tool 45964 3/4" Carbide Tipped Ball End Router Bit
SKU
45964
$44.20
Ships direct from manufacturer?
Cut channels for pipes or cables using the ball end bit. The profile requires the cut to be made in a single pass. To reduce stress on the bit, cut an initial groove using a straight bit matching the D1 dimension of the ball end bit.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868585964 |
| PDFs | |
| Type | Router Bit |
| Ball Bearing | No |
| Cutter Height(B) | 11/16" |
| Cutting Diameter(D) | 5/16 x 3/4" |
| Diameter(D) | 3/4" |
| Diameter(D1) | 5/16" |
| Flutes | 2 |
| Length(L) | 2 1/2" |
| Material | Carbide Tip |
| Overall Length(L) | 2 1/2" |
| Radius | 3/8" |
| Radius(R) | 3/8" |
| RPM | 28,000 RPM |
| Shank | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | 45964 |
| Diameter(D) | 3/4" |
|---|---|
| Cutter Height(B) | 11/16" |
| Shank(d) | 1/2" |
| Overall Length(L) | 2-1/2" |
| Flutes | 2 |
| Radius(R) | 3/8" |
| Diameter(D1) | 5/16" |
| Max. RPM | 28,000 RPM |
