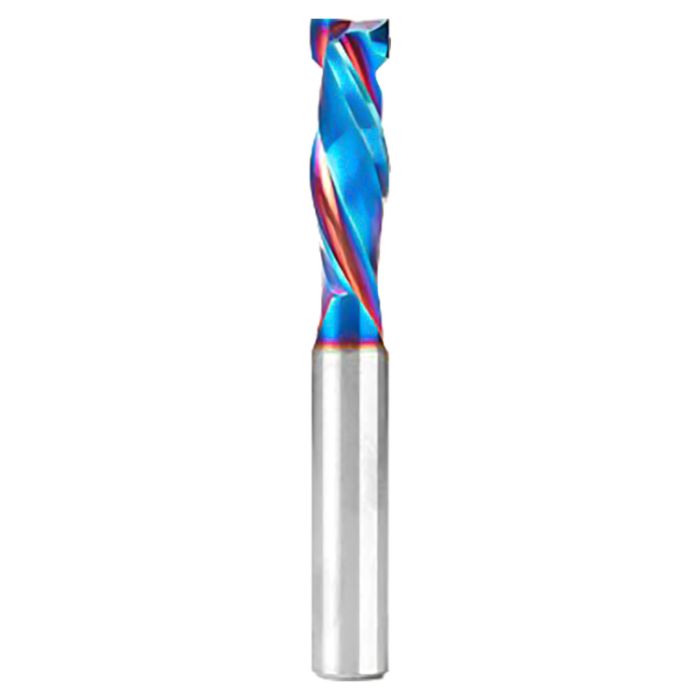

These tools have a much shorter up-cut section than the standard compression tools. Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance. Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off
WARNING: Proposition 65 Warning for California Residents View Details
nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
Coating prevents high heat and oxidation which is detrimental to cutting tool performance
Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
Flutes
2
Material
Solid Carbide
Type
Router Bit
Diameter (D)
3/8"
Cutting Height (B)
1 1/4"
Cutting Height (B1)
3/16"
Shank Diameter (d)
3/8"
Overall Length (L)
3"
Coating
nACo Ceramic
Style
Mortise Compression
Flute Type
Spiral
Recommended Speed (RPM)
20,000 - 21,000 RPM
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Wood)
200" / .0056" / 100"
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (MDF/Laminate)
400" / .0111" / 200"
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Plywood)
200" / .0056" / 100"
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Plastic)
200" / .0056" / 100"
Application
For Mortising Grooving and Dado, and for Cutting MDF/HDF, Laminate, Laminated Plywood, Melamine, Particle Board, Softwood/Hardwood, Veneered Plywood
