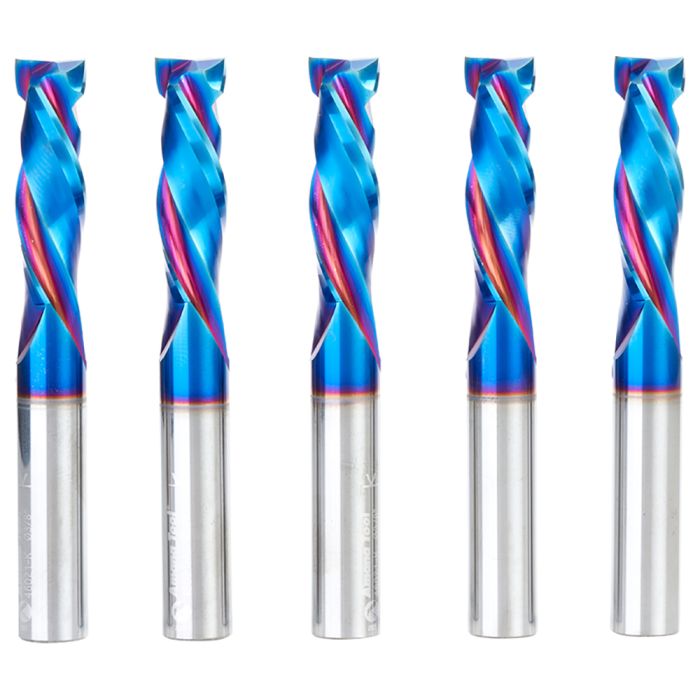

Amana Tool 46021-K-5 Spektra 3/8" CNC Solid Carbide Mortise Compression Spiral Router Bit, 5 Piece

SKU
46021-K-5
$556.58
Ships direct from manufacturer ?

These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising grooving and dado. Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling. Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
Features
  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
  • nACo offers approximately 4,500 vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
ApplicationMDF/HDF, Laminate, Laminated Plywood, Melamine, Particle Board, Softwood/Hardwood, Veneered Plywood
TypeRouter Bit
MaterialSolid Carbide
Flute TypeMortise Compression Spiral
CoatingNanocomposite
Flutes2
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Wood/Plywood/Plastic)200" / 0.0056" / 100"
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (MDF/Laminate)400" / 0.0111" / 200"
Recommended Speed (RPM)20,000 RPM - 21,000 RPM
Shank Diameter (d)3/8"
Diameter (D)3/8"
Cutting Height (B)1 1/4"
Cutting Height (B1)3/16"
Overall Length (L)3"
Package Size5 Piece
