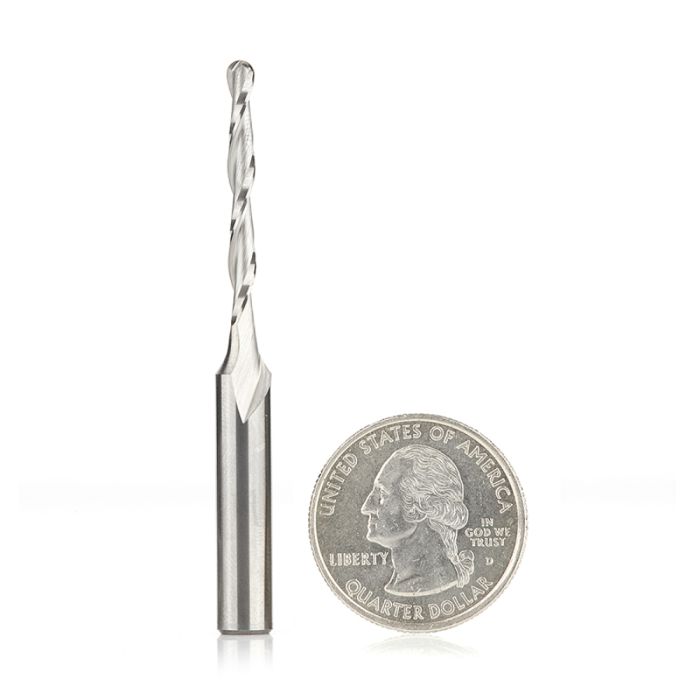

Amana Tool 46030 1/8" CNC Up-Cut Ball End Spiral Router Bit

SKU
46030
$76.23
Ships direct from manufacturer ?

Ensure our foam projects are milled with unparalleled accuracy detail and clarity. Achieve both precision and depth for foam carving and milling applications. Provides deeper cuts and larger slices with fewer passes in thick materials resulting in improved productivity and less assembly. The up-cut spiral ejects chips away from the workpiece.

*Expanded polypropylene (EPP) is a foam form of polypropylene.

**Ethafoam Polyethylene and Polylam are durable flexible closed-cell foams with excellent memory.

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC00738685460306
Flutes2
MaterialSolid Carbide
Type Router Bit
Direction Up-Cut
Diameter (D) 1/8"
Radius (R) 1/16"
Cutting Height (B) 1 1/8"
Shank Diameter (d) 1/4"
Overall Length (L) 2 1/2"
Style Ball End
Application For Milling Crosslinked Polyethylene Foam (XLPE), Ethafoam**, Ethylene-vinyl Acetate Foam (EVA), Expanded Polypropylene (EPP)*, Expanded Polystyrene (EPS), Extruded Polystyrene Foam (XPS), Flexible Polyurethane Foam (FPF), Fomex, High Density Urethane (HUD Board), PALFOAM, Polycarbonate (Lexan), Polyethylene Foam**, Polylam**, Polyurethane Foam, For Thick Material with Up-Cut Chip Removal. For 2D & 3D CNC Routing Applications
Feed Rate IPM** / Chip Load Per Tooth (Foam) 100" - 140" / 0.002" - 0.004"
Maximum Speed (RPM) 28,000 RPM
