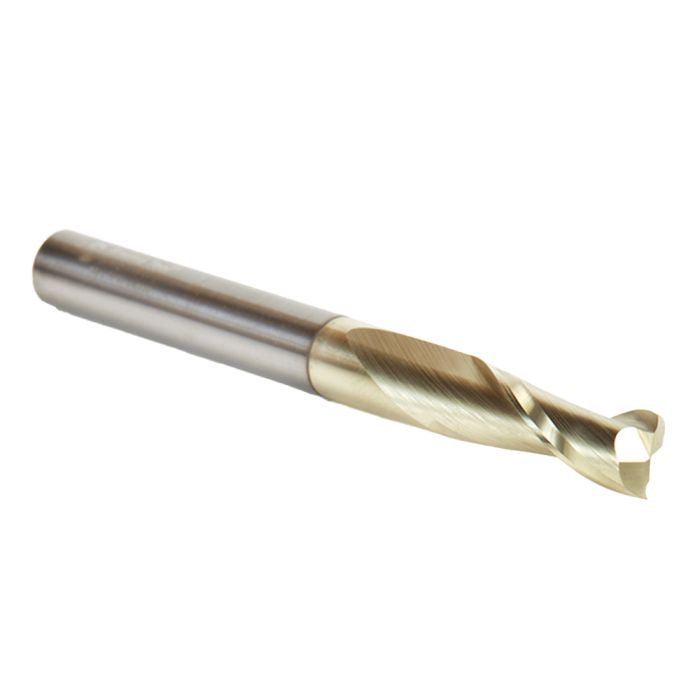

Amana Tool 46043 1/4" Solid Carbide Up-Cut Spiral ZrN Coated Router Bit

SKU
46043
$44.75
Ships direct from manufacturer ?
Notify me when the price drops
Add to Wish List Add to Compare
Shipping Policy Return Policy

Amana Tool Modern Materials Finishing Geometry (MMFG) incorporates high shear, multi-flute and a ZrN coating designed for the ultimate combination of finish and tool longevity in aerospace materials. Modern-day materials present challenges to the fabricator using these special multi-flute edge tools featuring ZrN ceramic coating addresses these challenges with a winning geometry combination.

*A soft plastic cardboard made with super soft super flexible PVC.

Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
Features

Benefits of ZrN Coating

  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • High resistance to wear
  • Extended tool life
  • Less friction and heat buildup
  • High resistance to wear
Flutes2
MaterialSolid Carbide
Type Router Bit
Direction Up-Cut
Diameter (D) 1/4"
Cutting Height (B) 3/4"
Shank Diameter (d) 1/4"
Overall Length (L) 2 1/2"
Coating Zirconium Nitride
Spindle Speed (RPM) 18,000 RPM
Spindle Speed SFM* / Feed Rate IPM** / Chip Load Per Tooth (Composites) 600 - 800 / 110" - 180" / 0.003" - 0.005"
Spindle Speed SFM* / Feed Rate IPM** / Chip Load Per Tooth (Fiberglass) 800 - 1,200 / 110" - 180" / 0.003" - 0.005"
Spindle Speed SFM* / Feed Rate IPM** / Chip Load Per Tooth (Phenolic) 800 - 1,200 / 150" - 210" / 0.004" - 0.006"
Spindle Speed SFM* / Feed Rate IPM** / Chip Load Per Tooth (Aluminum) 300 - 600 / 150" - 210" / 0.004" - 0.006"
Application For cutting Plastic, Acrylic Stone, Aluminum, Acrylonitrile-Butadiene-Styrene (ABS), Carbon Fiber Reinforced Polymer (CFRP), Composite, Corian, Coroplast, Fiberglass, Fiberglass PCB Board, HDPE, High Impact Polystyrene (HIPS), Low Density Polyethylene (LDPE), Phenolics, Poly (methyl methacrylate) (PMMA), Polycarbonate (Lexan), Polyethylene Terephthalate Glycol-Modified (PETG / PET-G), Thermoplastic Polyolefin (TPO)
