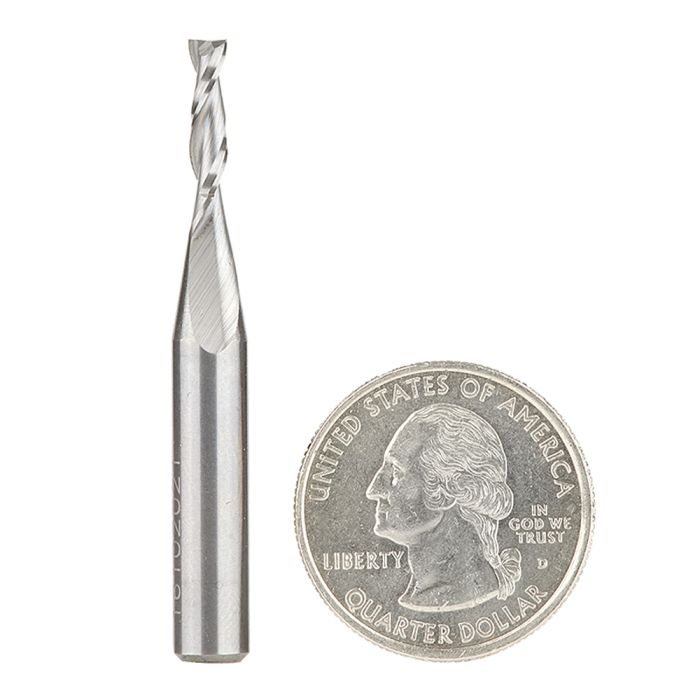

Amana Tool 46100 1/8" Solid Carbide Up-Cut Spiral Plunge Router Bit

SKU
46100
$37.03
In Stock
Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut. The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising. Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Great for production settings and excellent for creating grooves and dado cuts in particleboard, plywood and laminate. Primarily used on CNC machines and other automatic routers. Can be used with handheld and table-mounted portable routers.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868586100
Features
  • Unique carbide grade for longer lifetime in abrasive materials
  • Produces a superior finish and longer tool life
  • Razor-sharp cutting edges/polished flutes'
  • Can be used with hand-held, table-mounted
  • portable routers and CNC machines
  • Industrial quality
TypeRouter Bit
Ball BearingNo
Cutter Height(B)1/2"
Diameter(D)1/8"
Flutes2
MaterialSolid Carbide
Overall Length(L)2"
Shank(d)1/4"
Tool No.46100
Diameter(D)1/8"
Cutting Height (B)1/2"
Overall Length(L)2"
Shank(d)1/4"
Flutes2
DirectionUp-Cut
StyleSpiral Plunge
Max. RPM35,000 RPM
