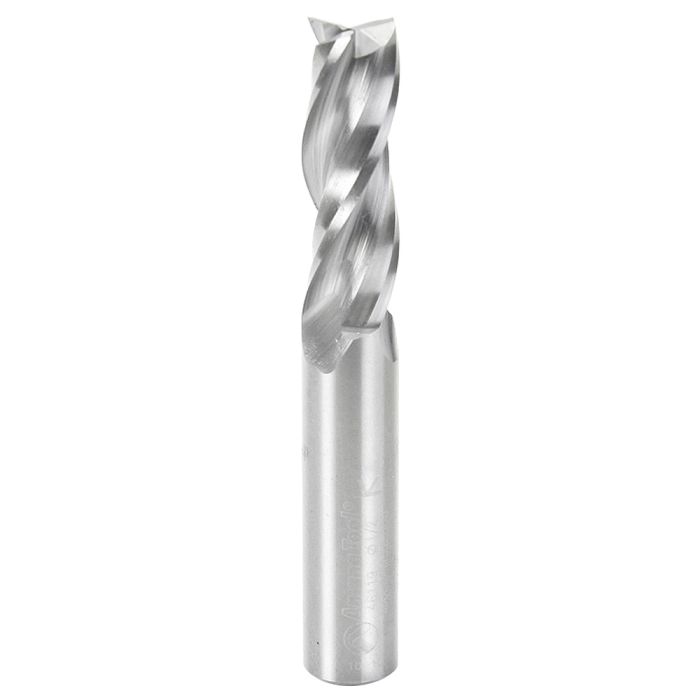

Amana Tool 46116 1/2" x 1-1/2" Solid Carbide Up-Cut Spiral Plunge Router Bit
Ships direct from manufacturer
Great for production settings and excellent for creating grooves and dado cuts. 'Up-Cut' spiral. Three-flute design for very high quality finish.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Amana Tool Corp. |
|---|
| Condition | New |
|---|
| UPC | 73868546116 |
|---|
| PDFs | |
|---|
| Application | For Softwood, Hardwood Plywood and Composite Materials |
|---|
| Flutes | 3 |
|---|
| Material | Solid Carbide |
|---|
| Type | Router Bit |
|---|
| Direction | Up-Cut |
|---|
| Diameter (D) | 1/2" |
|---|
| Cutting Height (B) | 1 1/2" |
|---|
| Shank Diameter (d) | 1/2" |
|---|
| Overall Length (L) | 3 1/2" |
|---|
| Style | Spiral Plunge |
|---|
| Recommended Speed (RPM) | 20,000 - 21,000 RPM |
|---|
| Maximum Speed (RPM) | 28000 RPM |
|---|
| Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Wood/Plywood) | 300" / .0057" / 100" |
|---|
| Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (MDF/Laminate) | 500" / .0096" / 167" |
|---|
