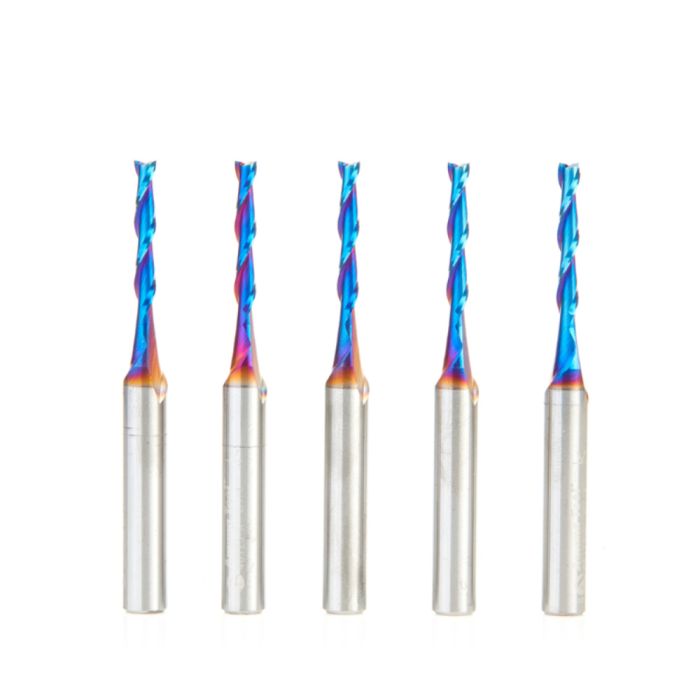

Amana Tool 46125-K-5 1/8" x 1/4" Spektra Solid Carbide Spiral Plunge Up-Cut Router Bit, 5 Piece

SKU
46125-K-5
$208.09
Ships direct from manufacturer?

Spiral-flute bits combine a shearing action in cutting with an augering action in chip clearance. The shearing action yields an especially clean accurate cut while the augering action clears chips from the cut. The ‘Up-Cut’ shears from the bottom up pulling chips from the bottom up thus allowing deeper penetration with less stress on the tool. An excellent choice for mortising. Special unique carbide grade increased clearance geometry and razor-sharp cutting edges with polished flutes provide a superior finish and longer tool life especially in abrasive materials. Primarily used on CNC machines and other automatic routers. Our Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.



WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Amana Tool Corp.
Condition New
Features
  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits
Flutes 2
Material Solid Carbide
Package Size 5
TypeRouter Bit
Diameter (D)1/8"
Cutting Height (B)13/16"
Shank Diameter (d)1/4"
Overall Length (L)2 1/2"
StyleSpiral Plunge
DirectionUp Cut
CoatingnACo Ceramic
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (Wood/Plywood)145" / .0040" / 72.5"
Feed Rate IPM* / Chip Load Per Tooth / Ramp Down (MDF/Laminate)180" / .0050" / 90"
Suitable for Use withHandheld and Table-Mounted Portable Routers
ApplicationFor Creating Grooves and Dado Cuts in Particleboard, Plywood and Laminate, and for Cutting Laminate, Melamine, Melamine Particle Board, MDF, Veneered Plywood, Wood
